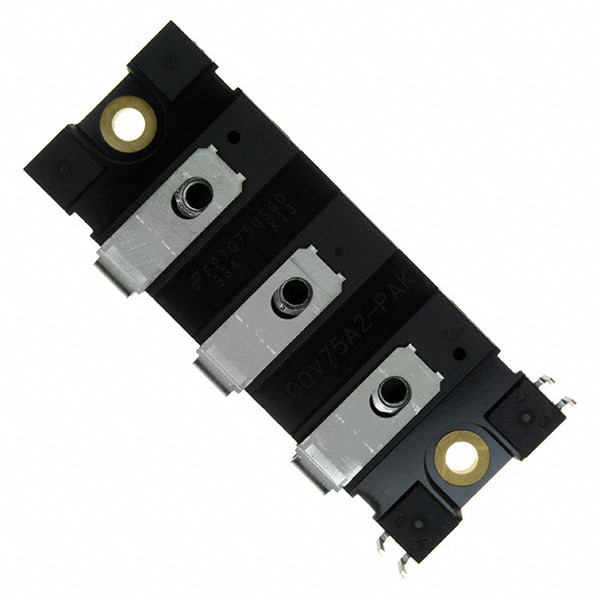

FP7G75US60
onsemi
Images are for reference only.
See Product Specifications for product details.
Buy FP7G75US60 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FP7G75US60 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FP7G75US60 |
|---|---|
| Manufacturer | onsemi |
| Description | Trans IGBT Module N-CH 600V 75A 7-Pin EPM Rail |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $31.618 | $28.54 | $25.742 | $25.183 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 600V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2.8V @ 15V, 75A |
| Supplier Device Package: | EPM7 |
| Series: | Power-SPM™ |
| Power - Max: | 310W |
| Package / Case: | EPM7 |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| NTC Thermistor: | No |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Cies) @ Vce: | 4.515nF @ 30V |
| Input: | Standard |
| IGBT Type: | - |
| Detailed Description: | IGBT Module Half Bridge 600V 75A 310W Chassis Mount EPM7 |
| Current - Collector Cutoff (Max): | 250µA |
| Current - Collector (Ic) (Max): | 75A |
| Configuration: | Half Bridge |
| Email: | info@cjjhk.com |
Introduce
We can supply FP7G75US60, use the request quote form to request FP7G75US60 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FP7G75US60.The price and lead time for FP7G75US60 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FP7G75US60.We look forward to working with you to establish long-term relations of cooperation
