FOD814AS
onsemi

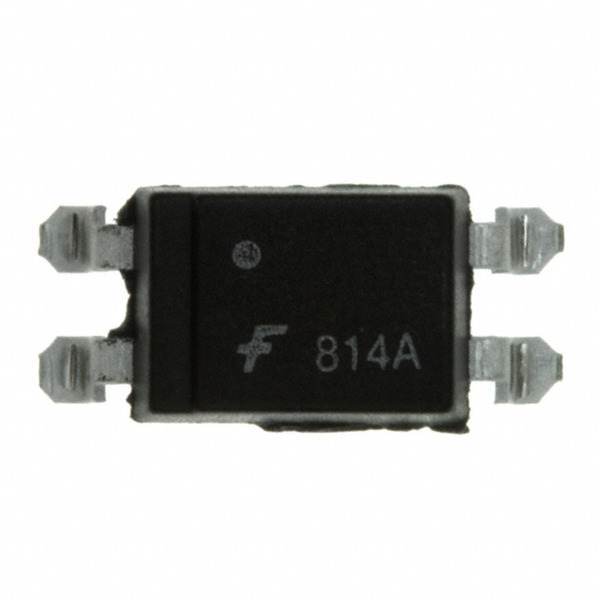

Images are for reference only.
See Product Specifications for product details.
Buy FOD814AS with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FOD814AS with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FOD814AS |
|---|---|
| Manufacturer | onsemi |
| Description | Optocoupler AC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Black Box |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.279 | $0.252 | $0.227 | $0.222 | ||
Specifications
Data sheet
| Voltage - Output (Max): | 70V |
|---|---|
| Voltage - Isolation: | 5000Vrms |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Vce Saturation (Max): | 200mV |
| Turn On / Turn Off Time (Typ): | - |
| Supplier Device Package: | 4-SMD |
| Series: | - |
| Rise / Fall Time (Typ): | 4µs, 3µs |
| Packaging: | Tube |
| Package / Case: | 4-SMD, Gull Wing |
| Output Type: | Transistor |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | AC, DC |
| Detailed Description: | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
| Current Transfer Ratio (Min): | 50% @ 1mA |
| Current Transfer Ratio (Max): | 150% @ 1mA |
| Current - Output / Channel: | 50mA |
| Current - DC Forward (If) (Max): | 50mA |
| Email: | info@cjjhk.com |
Introduce
We can supply FOD814AS, use the request quote form to request FOD814AS pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FOD814AS.The price and lead time for FOD814AS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FOD814AS.We look forward to working with you to establish long-term relations of cooperation
