FJY3004R
onsemi

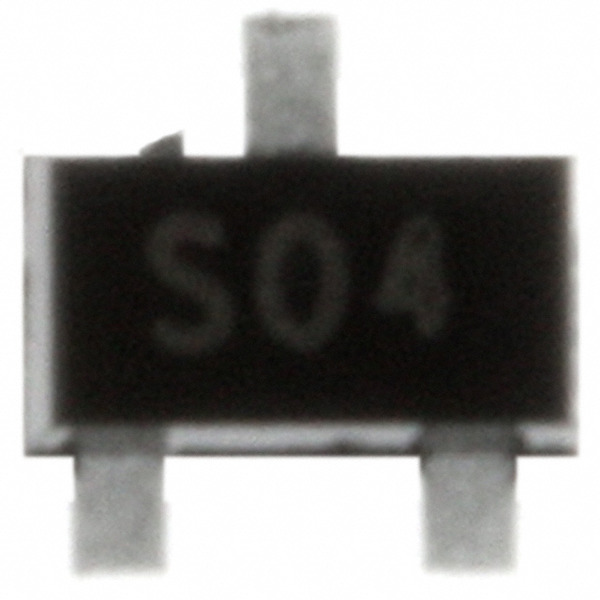

Images are for reference only.
See Product Specifications for product details.
Buy FJY3004R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FJY3004R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FJY3004R |
|---|---|
| Manufacturer | onsemi |
| Description | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.046 | $0.042 | $0.038 | $0.037 | ||
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 50V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 500µA, 10mA |
| Transistor Type: | NPN - Pre-Biased |
| Supplier Device Package: | SOT-523F |
| Series: | - |
| Resistor - Emitter Base (R2): | 47 kOhms |
| Resistor - Base (R1): | 47 kOhms |
| Power - Max: | 200mW |
| Packaging: | Cut Tape (CT) |
| Package / Case: | SC-89, SOT-490 |
| Other Names: | FJY3004RCT |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Frequency - Transition: | 250MHz |
| Detailed Description: | Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 250MHz 200mW Surface Mount SOT-523F |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 56 @ 5mA, 5V |
| Current - Collector Cutoff (Max): | 100nA (ICBO) |
| Current - Collector (Ic) (Max): | 100mA |
| Base Part Number: | FJY3004 |
| Email: | info@cjjhk.com |
Introduce
We can supply FJY3004R, use the request quote form to request FJY3004R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FJY3004R.The price and lead time for FJY3004R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FJY3004R.We look forward to working with you to establish long-term relations of cooperation
