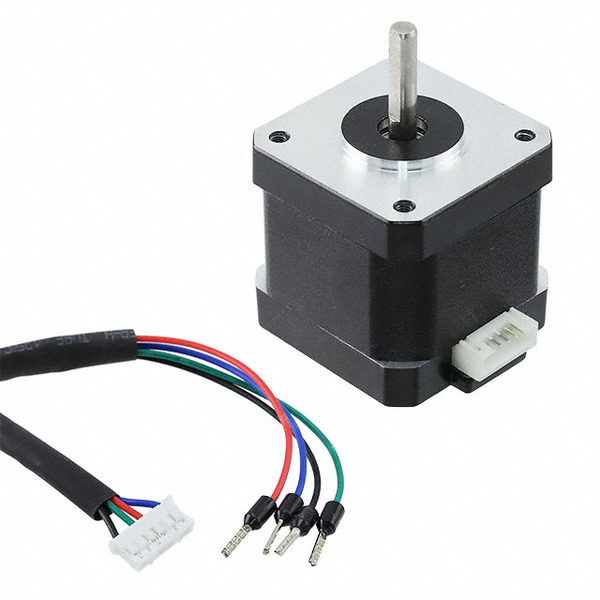

FIT0278
DFRobot
Images are for reference only.
See Product Specifications for product details.
Buy FIT0278 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FIT0278 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FIT0278 |
|---|---|
| Manufacturer | DFRobot |
| Description | HYBRID STEPPER MOTOR FOR 3D PRIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $14.37 | |||||
Specifications
Data sheet
| Weight: | 0.595 lb (269.89g) |
|---|---|
| Voltage - Rated: | 3.4VDC |
| Type: | Hybrid |
| Torque - Holding (oz-in / mNm): | 48.6 / 343.19 |
| Termination Style: | Connector |
| Steps per Revolution: | 200 |
| Step Angle: | 1.8° |
| Size / Dimension: | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Series: | - |
| Rotor Inertia: | - |
| Other Names: | 1738-1036 |
| Operating Temperature: | -20°C ~ 50°C |
| NEMA Frame Size: | 17 |
| Mounting Hole Spacing: | 1.220" (31.00mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Length - Shaft and Bearing: | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Round Shaft |
| Diameter - Shaft: | 0.197" (5.00mm) |
| Detailed Description: | Bipolar Stepper Motor Hybrid Frame Size 17 200 Step 1.7A 3.4VDC |
| Current Rating: | 1.7A |
| Coil Type: | Bipolar |
| Coil Resistance: | 2 Ohms |
| Approvals: | - |
| Accuracy: | ±5% |
| Email: | info@cjjhk.com |
Introduce
We can supply FIT0278, use the request quote form to request FIT0278 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FIT0278.The price and lead time for FIT0278 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FIT0278.We look forward to working with you to establish long-term relations of cooperation
