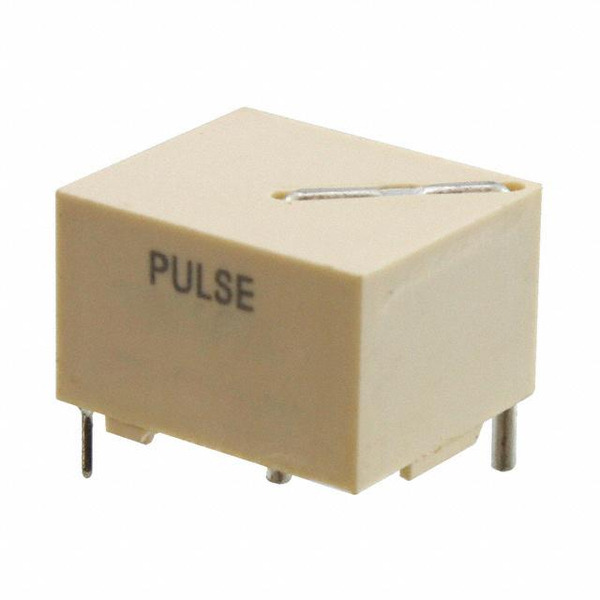

FIS115NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy FIS115NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FIS115NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FIS115NL |
|---|---|
| Manufacturer | Pulse |
| Description | Current Transformer 1: 100 4000Vrms 2Ohm Sec. DCR 25000mA Prim. 5Term. PC Pin Thru-Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.328 | $1.199 | $1.081 | $1.058 | ||
Specifications
Data sheet
| Weight: | 0.017 lb (7.71g) |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 1:100 |
| Termination Style: | PC Pin |
| Size / Dimension: | 0.693" L x 0.591" W (17.60mm x 15.00mm) |
| Series: | FIS 1X5 |
| Ratings: | - |
| Packaging: | Bulk |
| Other Names: | 553-1834-5 FIS115NL-ND |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 17 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 18mH |
| Height - Seated (Max): | 0.492" (12.50mm) |
| Frequency Range: | 500kHz Max |
| Energy Time (E.T.): | 350V µS |
| Detailed Description: | 1:100 Current Sense Transformer 500kHz Max 2 Ohm Max 18mH Through Hole |
| DC Resistance (DCR): | 2 Ohm Max |
| Current Ratio: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply FIS115NL, use the request quote form to request FIS115NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FIS115NL.The price and lead time for FIS115NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FIS115NL.We look forward to working with you to establish long-term relations of cooperation
