FH19SC-26S-0.5SH(05)
Hirose

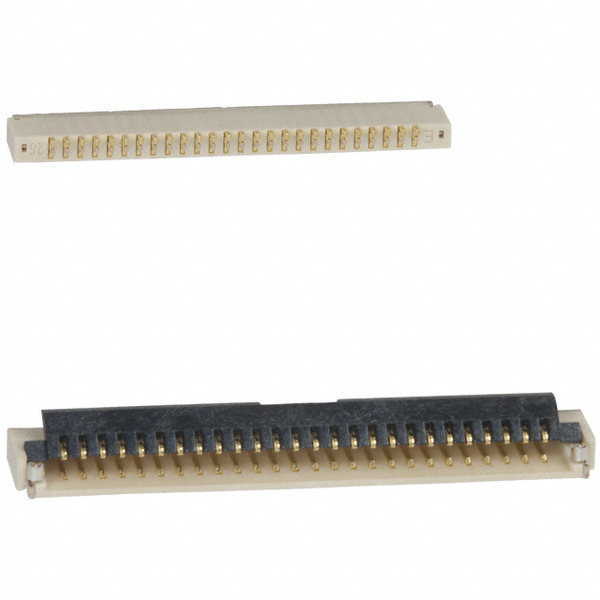

Images are for reference only.
See Product Specifications for product details.
Buy FH19SC-26S-0.5SH(05) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FH19SC-26S-0.5SH(05) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FH19SC-26S-0.5SH(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FFC BOTTOM 26POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.17 | $1.967 | $1.847 | $1.767 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.686 | $1.526 | $1.405 | |||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | FH19SC |
| Pitch: | 0.020" (0.50mm) |
| Packaging: | Cut Tape (CT) |
| Other Names: | *FH19SC-26S-0.5SH(05) HFN526CT |
| Operating Temperature: | -55°C ~ 85°C |
| Number of Positions: | 26 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 20 |
| Material Flammability Rating: | UL94 V-0 |
| Locking Feature: | Flip Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color: | Beige |
| Height Above Board: | 0.037" (0.95mm) |
| Flat Flex Type: | FFC, FPC |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating: | 0.5A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | - |
| Contact Finish: | Gold |
| Connector/Contact Type: | Contacts, Bottom |
| Cable End Type: | Tapered |
| Actuator Material: | Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS) |
| Actuator Color: | Black |
| Email: | info@cjjhk.com |
Introduce
We can supply FH19SC-26S-0.5SH(05), use the request quote form to request FH19SC-26S-0.5SH(05) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FH19SC-26S-0.5SH(05).The price and lead time for FH19SC-26S-0.5SH(05) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FH19SC-26S-0.5SH(05).We look forward to working with you to establish long-term relations of cooperation
