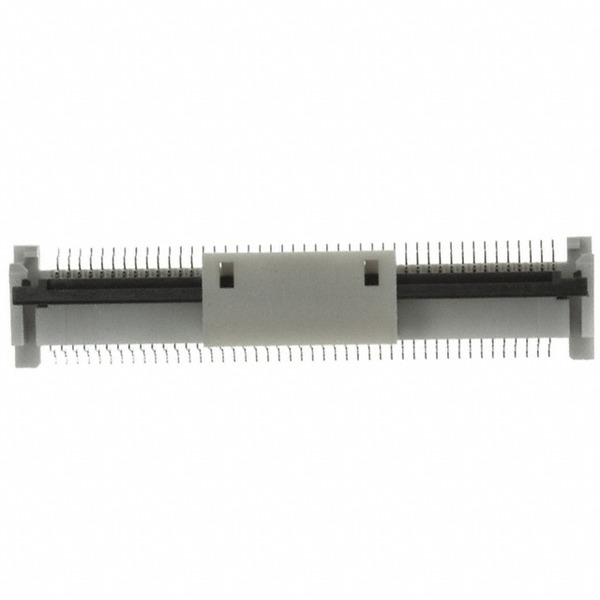

FH16-90S-0.3SHW
Hirose
Images are for reference only.
See Product Specifications for product details.
Buy FH16-90S-0.3SHW with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FH16-90S-0.3SHW with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FH16-90S-0.3SHW |
|---|---|
| Manufacturer | Hirose |
| Description | CONN FPC BOTTOM 90POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | 30V |
|---|---|
| Termination: | Solder |
| Series: | FH16 |
| Pitch: | 0.012" (0.30mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | HFP090TR |
| Operating Temperature: | -40°C ~ 70°C |
| Number of Positions: | 90 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 20 |
| Material Flammability Rating: | UL94 V-0 |
| Locking Feature: | Flip Lock |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Housing Material: | Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon |
| Housing Color: | Beige |
| Height Above Board: | 0.118" (3.00mm) |
| Flat Flex Type: | FPC |
| Features: | Pick and Place Cap, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 90 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating: | 0.15A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin-Lead |
| Connector/Contact Type: | Contacts, Bottom |
| Cable End Type: | Tabbed |
| Actuator Material: | Polyphenylene Sulfide (PPS) |
| Actuator Color: | Brown |
| Email: | info@cjjhk.com |
Introduce
We can supply FH16-90S-0.3SHW, use the request quote form to request FH16-90S-0.3SHW pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FH16-90S-0.3SHW.The price and lead time for FH16-90S-0.3SHW depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FH16-90S-0.3SHW.We look forward to working with you to establish long-term relations of cooperation
