FDZ294N
onsemi

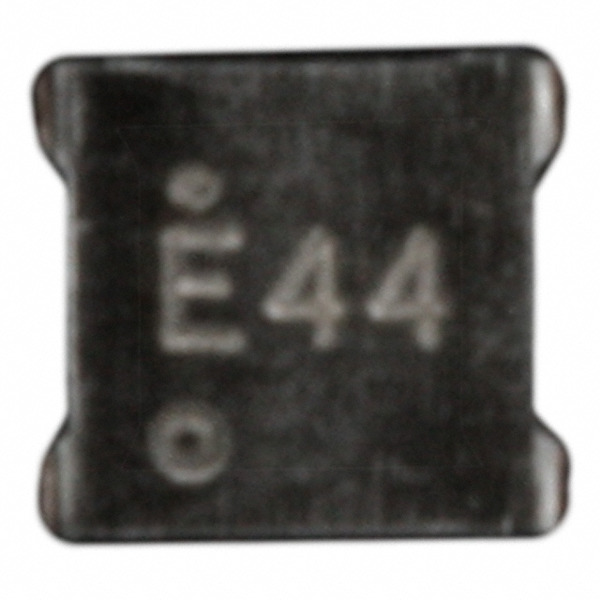

Images are for reference only.
See Product Specifications for product details.
Buy FDZ294N with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDZ294N with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FDZ294N |
|---|---|
| Manufacturer | onsemi |
| Description | Trans Mosfet N-ch 20V 6A 9-PIN BGA T/r |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.07 | $0.966 | $0.871 | $0.852 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 1.5V @ 250µA |
|---|---|
| Vgs (Max): | ±12V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | 9-BGA (1.5x1.6) |
| Series: | PowerTrench® |
| Rds On (Max) @ Id, Vgs: | 23 mOhm @ 6A, 4.5V |
| Power Dissipation (Max): | 1.7W (Ta) |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 9-VFBGA |
| Other Names: | FDZ294N-ND FDZ294NTR |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 670pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 10nC @ 4.5V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss): | 20V |
| Detailed Description: | N-Channel 20V 6A (Ta) 1.7W (Ta) Surface Mount 9-BGA (1.5x1.6) |
| Current - Continuous Drain (Id) @ 25°C: | 6A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply FDZ294N, use the request quote form to request FDZ294N pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDZ294N.The price and lead time for FDZ294N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDZ294N.We look forward to working with you to establish long-term relations of cooperation
