FDMF6707C
onsemi

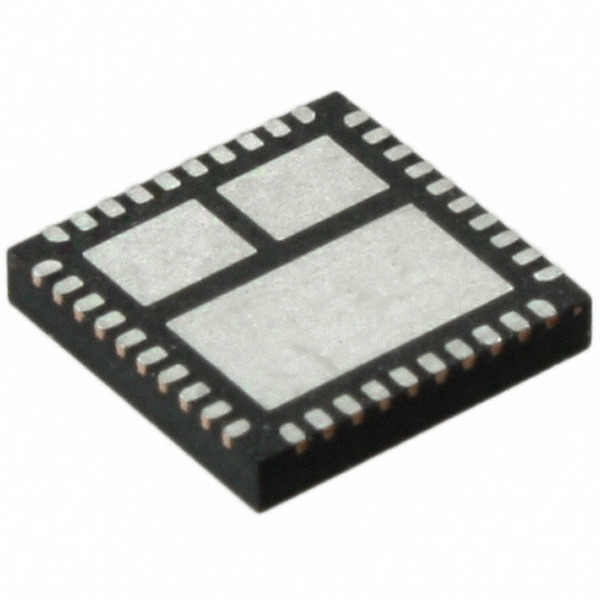

Images are for reference only.
See Product Specifications for product details.
Buy FDMF6707C with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMF6707C with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FDMF6707C |
|---|---|
| Manufacturer | onsemi |
| Description | Extra-Small, High-Performance, High-Frequency DrMOS Module / REEL RoHS Compliant: Yes |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $3.122 | $2.818 | $2.542 | $2.487 | ||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 5.5 V |
|---|---|
| Voltage - Load: | 3 V ~ 15 V |
| Technology: | DrMOS |
| Supplier Device Package: | 40-PQFN (6x6) |
| Series: | XS™ DrMOS |
| Rds On (Typ): | 1 Ohm LS, 1 Ohm HS |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 40-PowerTFQFN |
| Output Configuration: | Half Bridge |
| Other Names: | FDMF6707C-ND FDMF6707CTR |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Load Type: | Inductive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Features: | Bootstrap Circuit, Status Flag |
| Fault Protection: | Over Temperature, Shoot-Through, UVLO |
| Detailed Description: | Half Bridge Driver Synchronous Buck Converters DrMOS 40-PQFN (6x6) |
| Current - Peak Output: | - |
| Current - Output / Channel: | 50A |
| Base Part Number: | FDMF6707 |
| Applications: | Synchronous Buck Converters |
| Email: | info@cjjhk.com |
Introduce
We can supply FDMF6707C, use the request quote form to request FDMF6707C pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMF6707C.The price and lead time for FDMF6707C depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMF6707C.We look forward to working with you to establish long-term relations of cooperation
