FDMF3039
onsemi

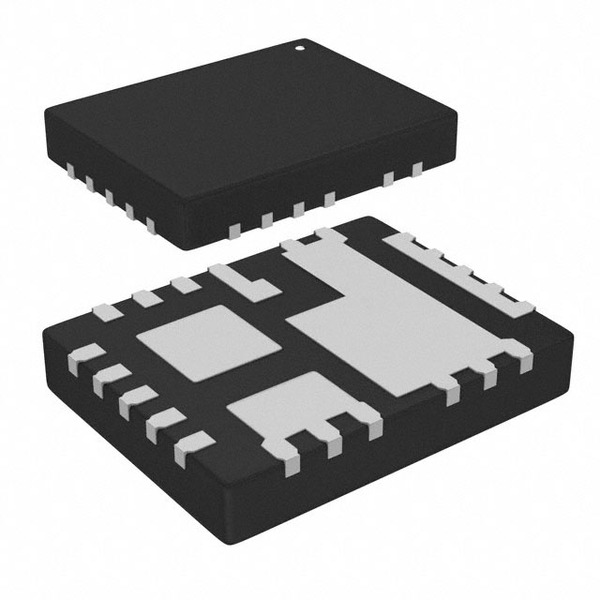

Images are for reference only.
See Product Specifications for product details.
Buy FDMF3039 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMF3039 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FDMF3039 |
|---|---|
| Manufacturer | onsemi |
| Description | Smart Power Stage Module 30A Current Rating 4.5V to 5.5V Supply Voltage 3-State 5V PWM Input Gate Driver Surface... |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.48 | $1.336 | $1.205 | $1.179 | ||
Specifications
Data sheet
| Voltage - Supply: | 4.5 V ~ 5.5 V |
|---|---|
| Voltage - Load: | 4.5 V ~ 24 V |
| Technology: | Power MOSFET |
| Supplier Device Package: | 22-PQFN (3.5x4.5) |
| Series: | - |
| Rds On (Typ): | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 22-PowerWFQFN |
| Output Configuration: | Half Bridge |
| Other Names: | FDMF3039CT |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Load Type: | Inductive |
| Interface: | PWM |
| Features: | Bootstrap Circuit, Diode Emulation |
| Fault Protection: | Shoot-Through, UVLO |
| Detailed Description: | Half Bridge Driver DC-DC Converters, Synchronous Buck Converter Power MOSFET 22-PQFN (3.5x4.5) |
| Current - Peak Output: | - |
| Current - Output / Channel: | 30A |
| Applications: | DC-DC Converters, Synchronous Buck Converter |
| Email: | info@cjjhk.com |
Introduce
We can supply FDMF3039, use the request quote form to request FDMF3039 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMF3039.The price and lead time for FDMF3039 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMF3039.We look forward to working with you to establish long-term relations of cooperation
