FDMD8240L
onsemi

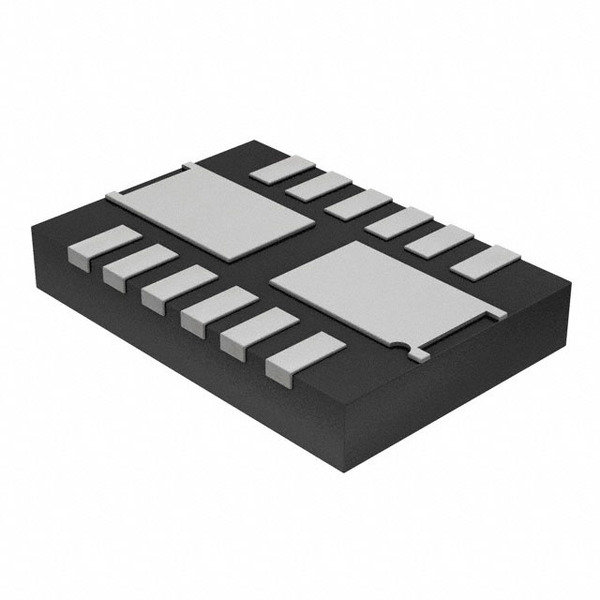

Images are for reference only.
See Product Specifications for product details.
Buy FDMD8240L with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDMD8240L with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FDMD8240L |
|---|---|
| Manufacturer | onsemi |
| Description | Transistor MOSFET Array Dual N-CH 40V 98A 12-Pin PowerFLAT T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.521 | $2.275 | $2.052 | $2.008 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 3V @ 250µA |
|---|---|
| Supplier Device Package: | 12-Power3.3x5 |
| Series: | PowerTrench® |
| Rds On (Max) @ Id, Vgs: | 2.6 mOhm @ 23A, 10V |
| Power - Max: | 2.1W |
| Packaging: | Original-Reel® |
| Package / Case: | 12-PowerWDFN |
| Other Names: | FDMD8240LDKR |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 4230pF @ 20V |
| Gate Charge (Qg) (Max) @ Vgs: | 56nC @ 10V |
| FET Type: | 2 N-Channel (Dual) |
| FET Feature: | Standard |
| Drain to Source Voltage (Vdss): | 40V |
| Detailed Description: | Mosfet Array 2 N-Channel (Dual) 40V 23A 2.1W Surface Mount 12-Power3.3x5 |
| Current - Continuous Drain (Id) @ 25°C: | 23A |
| Email: | info@cjjhk.com |
Introduce
We can supply FDMD8240L, use the request quote form to request FDMD8240L pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMD8240L.The price and lead time for FDMD8240L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMD8240L.We look forward to working with you to establish long-term relations of cooperation
