FDB0690N1507L
AMI Semiconductor / ON Semiconductor

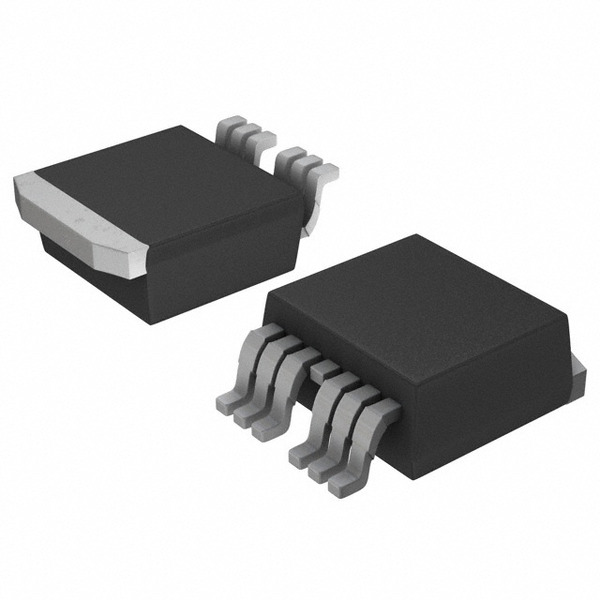

Images are for reference only.
See Product Specifications for product details.
Buy FDB0690N1507L with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDB0690N1507L with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FDB0690N1507L |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | 150V TO263 7L JEDEC GREEN EMC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | ||||
|---|---|---|---|---|---|
| $3.676 | |||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 4V @ 250µA |
|---|---|
| Vgs (Max): | ±20V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | D²PAK (TO-263) |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 6.9 mOhm @ 17A, 10V |
| Power Dissipation (Max): | 250W (Tc) |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | TO-263-7, D²Pak (6 Leads + Tab) |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 39 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 8775pF @ 75V |
| Gate Charge (Qg) (Max) @ Vgs: | 115nC @ 10V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Drain to Source Voltage (Vdss): | 150V |
| Detailed Description: | N-Channel 150V 3.8A (Tc) 250W (Tc) Surface Mount D²PAK (TO-263) |
| Current - Continuous Drain (Id) @ 25°C: | 3.8A (Tc) |
| Email: | info@cjjhk.com |
Introduce
We can supply FDB0690N1507L, use the request quote form to request FDB0690N1507L pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDB0690N1507L.The price and lead time for FDB0690N1507L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDB0690N1507L.We look forward to working with you to establish long-term relations of cooperation
