FD6-16
Triad Magnetics

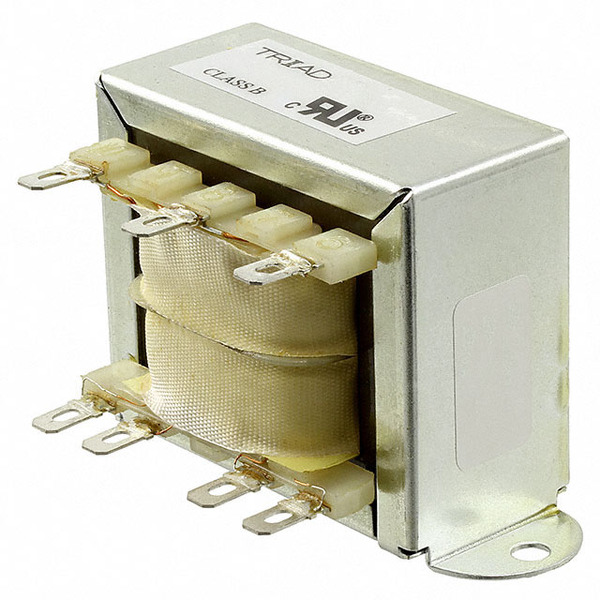

Images are for reference only.
See Product Specifications for product details.
Buy FD6-16 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FD6-16 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FD6-16 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.87 | $10.98 | $10.135 | $9.798 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.527 | $9.392 | $9.291 | $9.122 | ||
Specifications
Data sheet
| Weight: | 1.1 lbs (499g) |
|---|---|
| Voltage - Secondary (Full Load): | 16V |
| Voltage - Primary: | 115V, 230V |
| Voltage - Isolation: | 2500VAC |
| Type: | Laminated Core |
| Termination Style: | Solder, Quick Connect - 0.187" (4.7mm) |
| Size / Dimension: | 82.55mm L x 42.85mm W |
| Series: | Quick Pack |
| Secondary Winding(s): | Single |
| Primary Winding(s): | Dual |
| Power - Max: | 30 VA |
| Other Names: | 237-1747 |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 49.20mm |
| Current - Output (Max): | 2A |
| Center Tap: | Yes |
| Email: | info@cjjhk.com |
Introduce
We can supply FD6-16, use the request quote form to request FD6-16 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FD6-16.The price and lead time for FD6-16 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FD6-16.We look forward to working with you to establish long-term relations of cooperation
