FC1-05-02-T
Samtec, Inc.

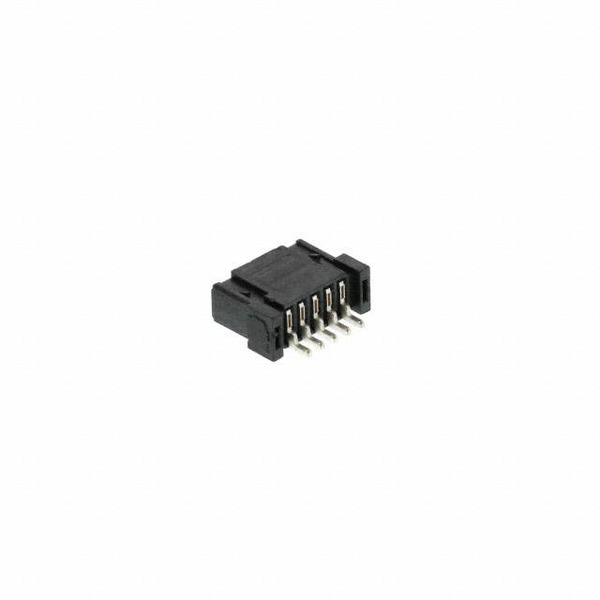

Images are for reference only.
See Product Specifications for product details.
Buy FC1-05-02-T with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FC1-05-02-T with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FC1-05-02-T |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 1MM SINGLE ROW CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 77 pcs | |
|---|---|---|---|---|---|
| $7.32 | $7.015 | $6.405 | $6.10 | ||
| 154 pcs | 308 pcs | 539 pcs | 1001 pcs | ||
| $5.795 | $5.185 | $4.88 | $4.27 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Series: | FC1 |
| Pitch: | 0.039" (1.00mm) |
| Packaging: | Tube |
| Other Names: | FC1-05-02-T-ND SAM11141 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Positions: | 5 |
| Mounting Type: | Surface Mount, Right Angle |
| Mating Cycles: | 25 |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Locking Feature: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP) |
| Housing Color: | Black |
| Height Above Board: | - |
| Flat Flex Type: | FFC |
| Features: | Solder Retention |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 5 Position FFC Connector Contacts, Top and Bottom 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating: | 2A per Contact |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | - |
| Contact Finish: | Tin |
| Connector/Contact Type: | Contacts, Top and Bottom |
| Cable End Type: | - |
| Actuator Material: | - |
| Actuator Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply FC1-05-02-T, use the request quote form to request FC1-05-02-T pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FC1-05-02-T.The price and lead time for FC1-05-02-T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FC1-05-02-T.We look forward to working with you to establish long-term relations of cooperation
