F7-56
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F7-56 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy F7-56 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | F7-56 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | XFRMR LAMINATED THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $18.07 | |||||
Specifications
Data sheet
| Weight: | 1.7 lbs (771.1g) |
|---|---|
| Voltage - Secondary (Full Load): | 56V |
| Voltage - Primary: | 115V |
| Voltage - Isolation: | 2500VAC |
| Type: | Laminated Core |
| Termination Style: | Solder, Quick Connect - 0.187" (4.7mm) |
| Size / Dimension: | 93.65mm L x 46.02mm W |
| Series: | Quick Pack |
| Secondary Winding(s): | Single |
| Primary Winding(s): | Single |
| Power - Max: | 56 VA |
| Other Names: | 237-1716 |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 57.15mm |
| Current - Output (Max): | 1A |
| Center Tap: | Yes |
| Email: | info@cjjhk.com |
Introduce
We can supply F7-56, use the request quote form to request F7-56 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number F7-56.The price and lead time for F7-56 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# F7-56.We look forward to working with you to establish long-term relations of cooperation
Related parts for F7-56
| Image | Part Number | Manufacturers | Description | View |
|---|---|---|---|---|
 |

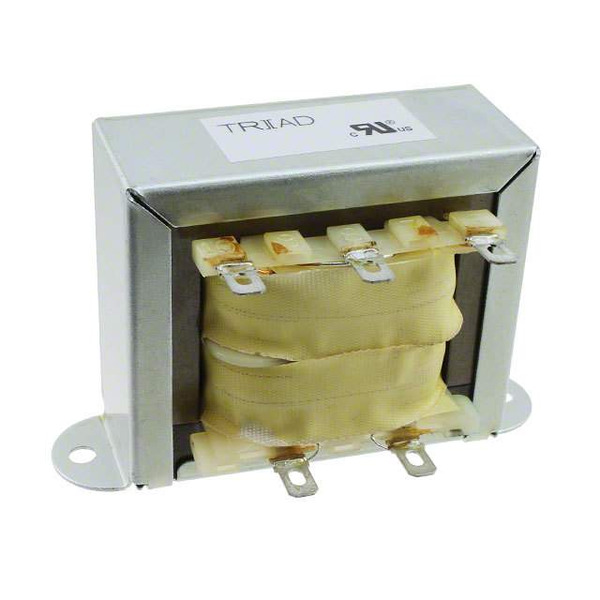

F7-36 | Triad Magnetics | XFRMR LAMINATED THRU HOLE | Inquiry |
 |
