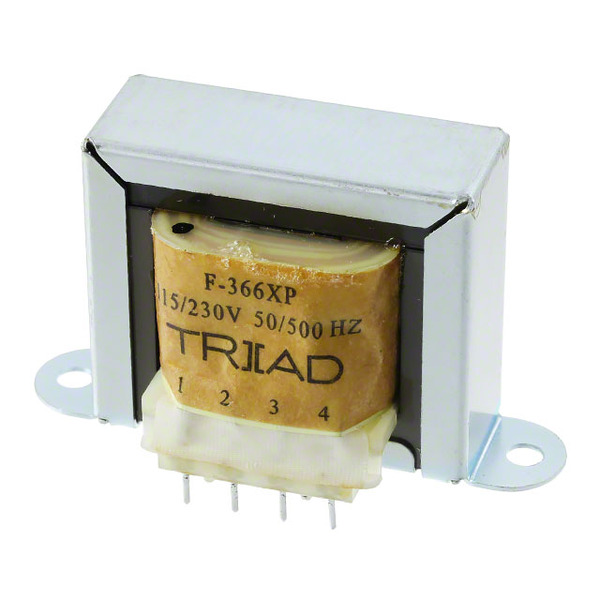

F-366XP
Triad Magnetics
Images are for reference only.
See Product Specifications for product details.
Buy F-366XP with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy F-366XP with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | F-366XP |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER TRANSFORMER PCB MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $11.04 | $8.157 | $7.53 | $7.279 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $7.078 | $6.977 | $6.902 | $6.777 | ||
Specifications
Data sheet
| Weight: | 0.688 lb (312.07g) |
|---|---|
| Voltage - Secondary (Full Load): | Parallel 8V, Series 16V |
| Voltage - Primary: | 115V, 230V |
| Voltage - Isolation: | 1500Vrms |
| Type: | Laminated Core |
| Termination Style: | PC Pin |
| Size / Dimension: | 71.42mm L x 36.50mm W |
| Series: | Single Primary |
| Secondary Winding(s): | Dual |
| Primary Winding(s): | Dual |
| Power - Max: | 10 VA |
| Other Names: | 237-1985 |
| Mounting Type: | User Defined |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 41.28mm |
| Current - Output (Max): | Parallel 1.28A, Series 640mA |
| Center Tap: | No |
| Email: | info@cjjhk.com |
Introduce
We can supply F-366XP, use the request quote form to request F-366XP pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number F-366XP.The price and lead time for F-366XP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# F-366XP.We look forward to working with you to establish long-term relations of cooperation
