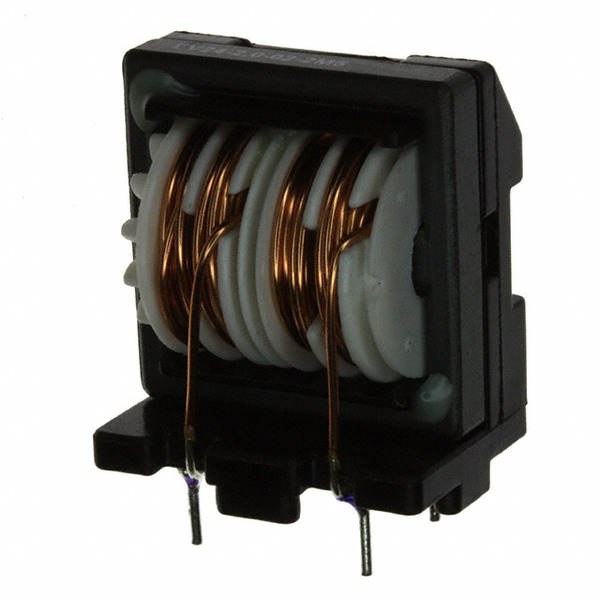

EV24-2.0-02-2M5
Schaffner EMC, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy EV24-2.0-02-2M5 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EV24-2.0-02-2M5 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EV24-2.0-02-2M5 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 2.5MH 2A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.46 | $2.268 | $1.588 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.285 | $1.172 | $1.134 | |||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | 250V |
| Size / Dimension: | 0.969" L x 0.685" W (24.60mm x 17.40mm) |
| Series: | EV |
| Ratings: | - |
| Packaging: | Tube |
| Package / Case: | Vertical, 4 PC Pin |
| Other Names: | 295-505 801058 817-1042 EV24-2,0-02-2M5 EV2420022M5 |
| Operating Temperature: | -25°C ~ 100°C |
| Number of Lines: | 2 |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 2.5mH @ 10kHz |
| Height (Max): | 1.185" (30.10mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 2.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 62 mOhm (Typ) |
| DC Resistance (DCR) (Max): | 62 mOhm (Typ) |
| Current Rating (Max): | 2A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply EV24-2.0-02-2M5, use the request quote form to request EV24-2.0-02-2M5 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EV24-2.0-02-2M5.The price and lead time for EV24-2.0-02-2M5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EV24-2.0-02-2M5.We look forward to working with you to establish long-term relations of cooperation
