EV20-1.0-02-3M9
Schaffner EMC, Inc.

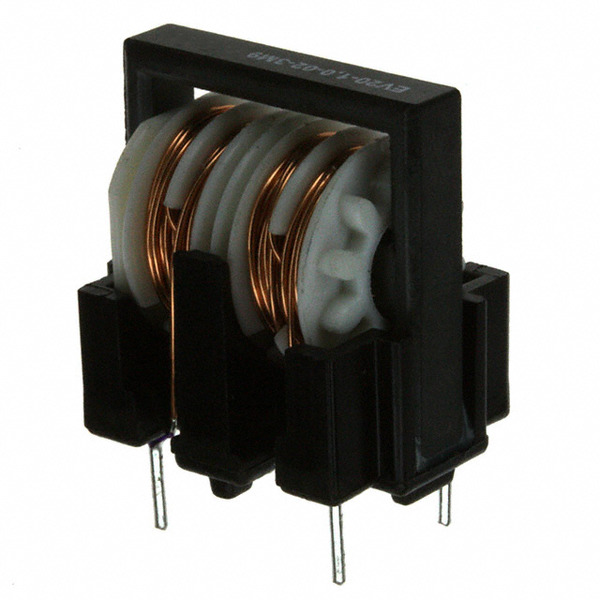

Images are for reference only.
See Product Specifications for product details.
Buy EV20-1.0-02-3M9 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EV20-1.0-02-3M9 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EV20-1.0-02-3M9 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 3.9MH 1A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.02 | $1.863 | $1.304 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.056 | $0.963 | $0.932 | |||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | 250V |
| Size / Dimension: | 0.827" L x 0.630" W (21.00mm x 16.00mm) |
| Series: | EV |
| Ratings: | - |
| Packaging: | Tube |
| Package / Case: | Vertical, 4 PC Pin |
| Other Names: | 295-497 817-1033 EV20-1,0-02-3M9 EV2010023M9 |
| Operating Temperature: | -25°C ~ 100°C |
| Number of Lines: | 2 |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 3.9mH @ 400Hz |
| Height (Max): | 1.024" (26.00mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 3.9mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 168 mOhm (Typ) |
| DC Resistance (DCR) (Max): | 168 mOhm (Typ) |
| Current Rating (Max): | 1A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply EV20-1.0-02-3M9, use the request quote form to request EV20-1.0-02-3M9 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EV20-1.0-02-3M9.The price and lead time for EV20-1.0-02-3M9 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EV20-1.0-02-3M9.We look forward to working with you to establish long-term relations of cooperation
