ESHF-105-01-L-D-SM
Samtec, Inc.

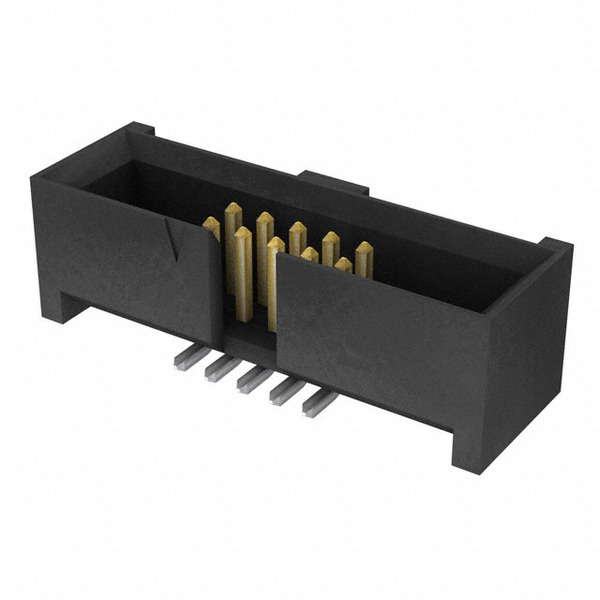

Images are for reference only.
See Product Specifications for product details.
Buy ESHF-105-01-L-D-SM with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ESHF-105-01-L-D-SM with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ESHF-105-01-L-D-SM |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HEADER 10POS DUAL ROW SMD 1.27MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.98 | $2.856 | $2.38 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $2.023 | $1.726 | $1.547 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | ESHF |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tube |
| Overall Contact Length: | - |
| Other Names: | ESHF-105-01-L-D-SM-ND Q8289025AL SAM8765 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.210" (5.33mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Surface Mount 10 position 0.050" (1.27mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.120" (3.05mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply ESHF-105-01-L-D-SM, use the request quote form to request ESHF-105-01-L-D-SM pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ESHF-105-01-L-D-SM.The price and lead time for ESHF-105-01-L-D-SM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ESHF-105-01-L-D-SM.We look forward to working with you to establish long-term relations of cooperation
