EMIF08-1502M16
STMicroelectronics

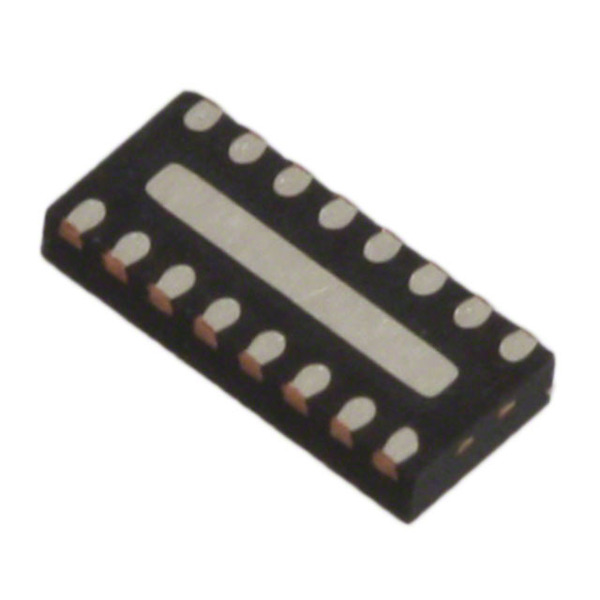

Images are for reference only.
See Product Specifications for product details.
Buy EMIF08-1502M16 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF08-1502M16 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EMIF08-1502M16 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | 8-line low capacitance EMI filter and ESD protection |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.859 | $0.776 | $0.70 | $0.684 | ||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Values: | R = 170 Ohms, C = 14pF (Total) |
| Type: | Low Pass |
| Technology: | RC (Pi) |
| Size / Dimension: | 0.130" L x 0.059" W (3.30mm x 1.50mm) |
| Series: | EMIF |
| Resistance - Channel (Ohms): | 170 |
| Packaging: | Original-Reel® |
| Package / Case: | 16-UFDFN Exposed Pad |
| Other Names: | 497-7743-6 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Channels: | 8 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.024" (0.60mm) |
| Filter Order: | 2nd |
| ESD Protection: | Yes |
| Detailed Description: | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 170 Ohms, C = 14pF (Total) 10mA 16-UFDFN Exposed Pad |
| Current: | 10mA |
| Center / Cutoff Frequency: | 300MHz (Cutoff) |
| Attenuation Value: | 30dB @ 900MHz ~ 1.8GHz |
| Applications: | Data Lines for Mobile Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply EMIF08-1502M16, use the request quote form to request EMIF08-1502M16 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EMIF08-1502M16.The price and lead time for EMIF08-1502M16 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EMIF08-1502M16.We look forward to working with you to establish long-term relations of cooperation
