EMIF06-HSD03F3
STMicroelectronics

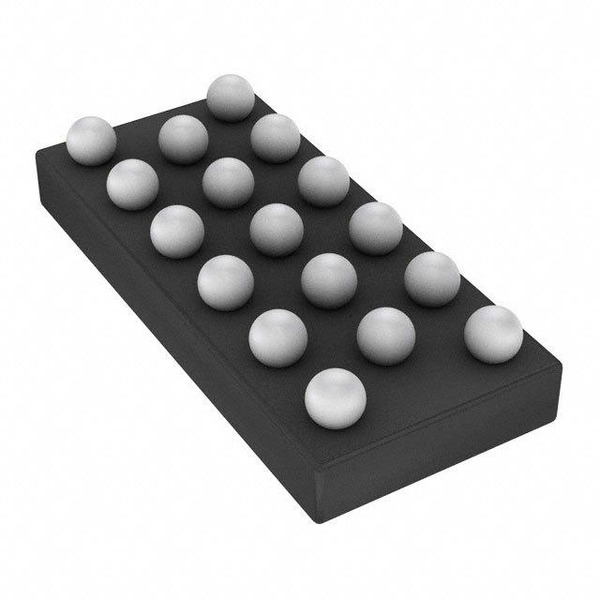

Images are for reference only.
See Product Specifications for product details.
Buy EMIF06-HSD03F3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF06-HSD03F3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EMIF06-HSD03F3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | EMI Filter Circuits 6-line EMI filter with integrated ESD protection for micro-SD Card |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.388 | $0.35 | $0.316 | $0.309 | ||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Values: | L = 1nH, C = 2.5pF |
| Type: | Low Pass |
| Technology: | RLC |
| Size / Dimension: | 0.094" L x 0.043" W (2.40mm x 1.10mm) |
| Series: | EMIF |
| Resistance - Channel (Ohms): | 1 |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 17-WFBGA, FCBGA |
| Other Names: | 497-15334-1 |
| Operating Temperature: | -30°C ~ 85°C |
| Number of Channels: | 6 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.026" (0.65mm) |
| Filter Order: | 3rd |
| ESD Protection: | Yes |
| Detailed Description: | RLC EMI Filter 3rd Order Low Pass 6 Channel L = 1nH, C = 2.5pF 17-WFBGA, FCBGA |
| Center / Cutoff Frequency: | - |
| Attenuation Value: | - |
| Applications: | Data Lines for Mobile Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply EMIF06-HSD03F3, use the request quote form to request EMIF06-HSD03F3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EMIF06-HSD03F3.The price and lead time for EMIF06-HSD03F3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EMIF06-HSD03F3.We look forward to working with you to establish long-term relations of cooperation
