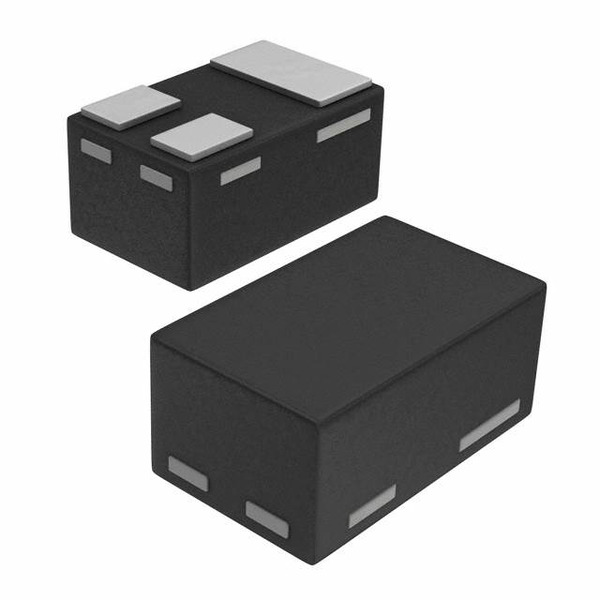

EMIF01-1003M3
STMicroelectronics
Images are for reference only.
See Product Specifications for product details.
Buy EMIF01-1003M3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF01-1003M3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EMIF01-1003M3 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | EMI Filter Circuits SNGL line EMI filter 30pF -27db @ 900MHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.307 | $0.277 | $0.25 | $0.244 | ||
Specifications
Data sheet
| Voltage - Rated: | - |
|---|---|
| Values: | R = 100 Ohms, C = 30pF |
| Type: | Low Pass |
| Technology: | RC (Pi) |
| Size / Dimension: | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Series: | IPAD™ |
| Resistance - Channel (Ohms): | 100 |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | SC-101, SOT-883 |
| Other Names: | 497-7738-2 EMIF01-1003M3-ND EMIF011003M3 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.020" (0.50mm) |
| Filter Order: | 2nd |
| ESD Protection: | Yes |
| Detailed Description: | RC (Pi) EMI Filter 2nd Order Low Pass 1 Channel R = 100 Ohms, C = 30pF SC-101, SOT-883 |
| Center / Cutoff Frequency: | 900MHz (Cutoff) |
| Attenuation Value: | -25dB @ 900MHz |
| Applications: | Data Lines for Mobile Devices |
| Email: | info@cjjhk.com |
Introduce
We can supply EMIF01-1003M3, use the request quote form to request EMIF01-1003M3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EMIF01-1003M3.The price and lead time for EMIF01-1003M3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EMIF01-1003M3.We look forward to working with you to establish long-term relations of cooperation
