ELL-VGG3R3N
Panasonic

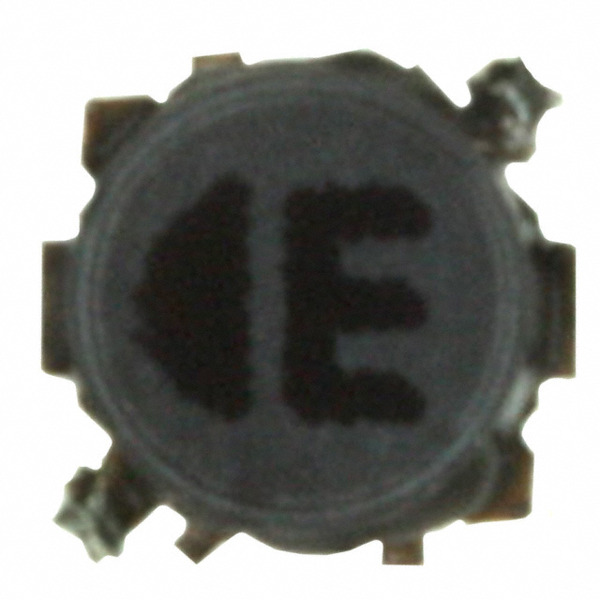

Images are for reference only.
See Product Specifications for product details.
Buy ELL-VGG3R3N with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-VGG3R3N with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ELL-VGG3R3N |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 3.3UH 1.1A 130 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.183 | $0.172 | $0.167 | $0.162 | $0.151 | |
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±30% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Shielding: | Shielded |
| Series: | G |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | ELLVGG3R3N PCD2300TR |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 3.3µH |
| Height - Seated (Max): | 0.059" (1.50mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 3.3µH Shielded Wirewound Inductor 1.1A 130 mOhm Nonstandard |
| DC Resistance (DCR): | 130 mOhm |
| Current Rating: | 1.1A |
| Current - Saturation: | 1.35A |
| Email: | info@cjjhk.com |
Introduce
We can supply ELL-VGG3R3N, use the request quote form to request ELL-VGG3R3N pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ELL-VGG3R3N.The price and lead time for ELL-VGG3R3N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ELL-VGG3R3N.We look forward to working with you to establish long-term relations of cooperation
