ELL-8TP6R8NB
Panasonic
Images are for reference only.
See Product Specifications for product details.
Buy ELL-8TP6R8NB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ELL-8TP6R8NB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ELL-8TP6R8NB |
|---|---|
| Manufacturer | Panasonic |
| Description | FIXED IND 6.8UH 3.5A 18 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | ||
|---|---|---|---|---|---|
| $0.513 | $0.456 | $0.442 | |||
| 5000 pcs | 12500 pcs | 25000 pcs | |||
| $0.428 | $0.413 | $0.399 | |||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±30% |
| Size / Dimension: | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Shielding: | Shielded |
| Series: | P |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | ELL8TP6R8NB PCD2443TR |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 6.8µH |
| Height - Seated (Max): | 0.197" (5.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 6.8µH Shielded Wirewound Inductor 3.5A 18 mOhm Nonstandard |
| DC Resistance (DCR): | 18 mOhm |
| Current Rating: | 3.5A |
| Current - Saturation: | 3.5A |
| Email: | info@cjjhk.com |
Introduce
We can supply ELL-8TP6R8NB, use the request quote form to request ELL-8TP6R8NB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ELL-8TP6R8NB.The price and lead time for ELL-8TP6R8NB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ELL-8TP6R8NB.We look forward to working with you to establish long-term relations of cooperation
Related parts for ELL-8TP6R8NB
| Image | Part Number | Manufacturers | Description | View |
|---|---|---|---|---|
 |
ELL-8UV100M | Panasonic | FIXED IND 10UH 3MA 22 MOHM SMD | Inquiry |
|
ELL-8UV101M | Panasonic | FIXED IND 100UH 0.82MA 160 MOHM | Inquiry |
 |
ELL-8TP471MB | Panasonic | FIXED IND 470UH 480MA 1 OHM SMD | Inquiry |
|
ELL-8UV1R3N | Panasonic | FIXED IND 1.3UH 5.4MA 7.8 MOHM | Inquiry |
|
ELL-8UV270M | Panasonic | FIXED IND 27UH 1.8MA 53 MOHM SMD | Inquiry |
|
ELL-8UV150M | Panasonic | FIXED IND 15UH 2.5MA 26 MOHM SMD | Inquiry |
|

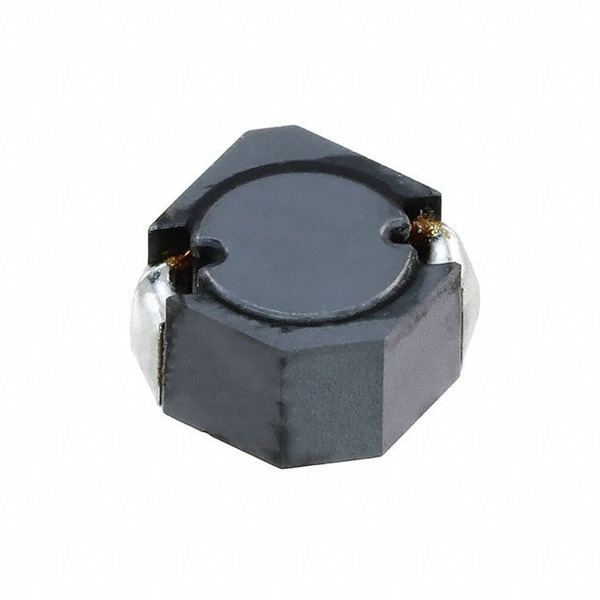

ELL-8TP820MB | Panasonic | FIXED IND 82UH 1.15A 170 MOHM | Inquiry |
|
