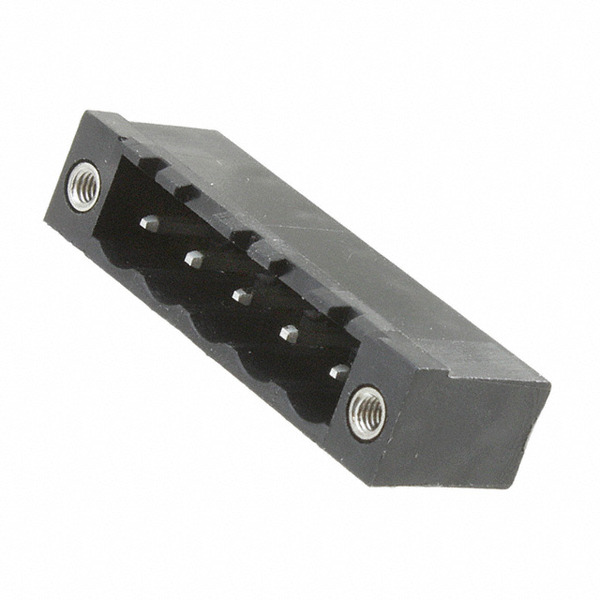

ELFH05210E
Amphenol Pcd
Images are for reference only.
See Product Specifications for product details.
Buy ELFH05210E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ELFH05210E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ELFH05210E |
|---|---|
| Manufacturer | Amphenol Pcd |
| Description | TERM BLOCK HDR 5POS 90DEG 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.83 | $2.14 | $1.984 | $1.784 | $1.74 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.523 | $1.392 | $1.262 | $1.109 | ||
Specifications
Data sheet
| Wire Strip Length: | - |
|---|---|
| Wire Gauge or Range - mm²: | - |
| Wire Gauge or Range - AWG: | - |
| Voltage - UL: | 300V |
| Type: | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw: | - |
| Termination Style: | Solder |
| Series: | ELFH |
| Screw Size: | - |
| Positions Per Level: | 5 |
| Plug Wire Entry: | - |
| Pitch: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Other Names: | APC1270 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Positions: | 5 |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.319" (8.10mm) |
| Ingress Protection: | - |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Header Orientation: | 90°, Right Angle |
| Features: | Mating Flange |
| Detailed Description: | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL: | 15A |
| Current - IEC: | - |
| Contact Tail Length: | 0.155" (3.94mm) |
| Contact Mating Finish: | Tin |
| Contact Material: | Brass |
| Color: | Black |
| Email: | info@cjjhk.com |
Introduce
We can supply ELFH05210E, use the request quote form to request ELFH05210E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ELFH05210E.The price and lead time for ELFH05210E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ELFH05210E.We look forward to working with you to establish long-term relations of cooperation
