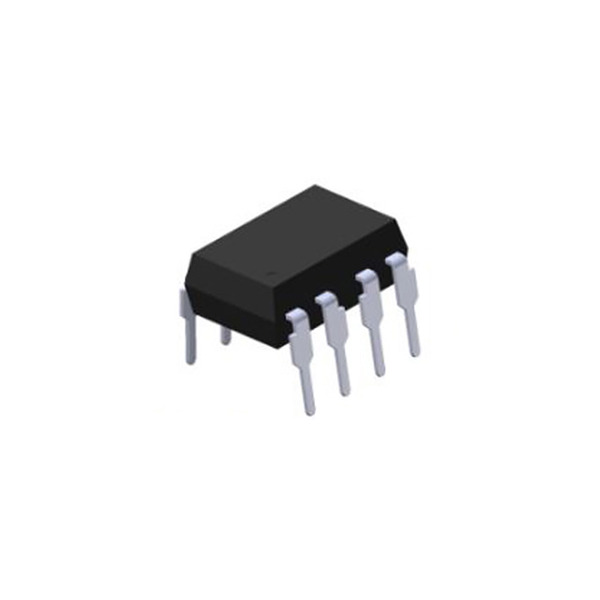

EL2630-V
Everlight Electronics
Images are for reference only.
See Product Specifications for product details.
Buy EL2630-V with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EL2630-V with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EL2630-V |
|---|---|
| Manufacturer | Everlight Electronics |
| Description | OPTOISO 5KV OPEN COLLECTOR 8DIP |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 135 pcs | 270 pcs |
|---|---|---|---|---|---|
| $2.33 | $2.068 | $1.534 | $1.334 | $1.201 | |
| 540 pcs | 1035 pcs | 2520 pcs | 5040 pcs | ||
| $1.067 | $0.917 | $0.867 | $0.834 | ||
Specifications
Data sheet
| Voltage - Supply: | 7V |
|---|---|
| Voltage - Isolation: | 5000Vrms |
| Voltage - Forward (Vf) (Typ): | 1.4V |
| Supplier Device Package: | 8-DIP |
| Series: | - |
| Rise / Fall Time (Typ): | 40ns, 10ns |
| Propagation Delay tpLH / tpHL (Max): | 100ns, 100ns |
| Packaging: | Tube |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Output Type: | Open Collector |
| Other Names: | 1080-1498 C180000063 |
| Operating Temperature: | -40°C ~ 100°C |
| Number of Channels: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Inputs - Side 1/Side 2: | 2/0 |
| Input Type: | DC |
| Detailed Description: | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 2 Channel 5kV/µs CMTI 8-DIP |
| Data Rate: | 10Mbps |
| Current - Output / Channel: | 50mA |
| Current - DC Forward (If) (Max): | 20mA |
| Common Mode Transient Immunity (Min): | 5kV/µs |
| Email: | info@cjjhk.com |
Introduce
We can supply EL2630-V, use the request quote form to request EL2630-V pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EL2630-V.The price and lead time for EL2630-V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EL2630-V.We look forward to working with you to establish long-term relations of cooperation
