EEH-ZC1J330P
Panasonic

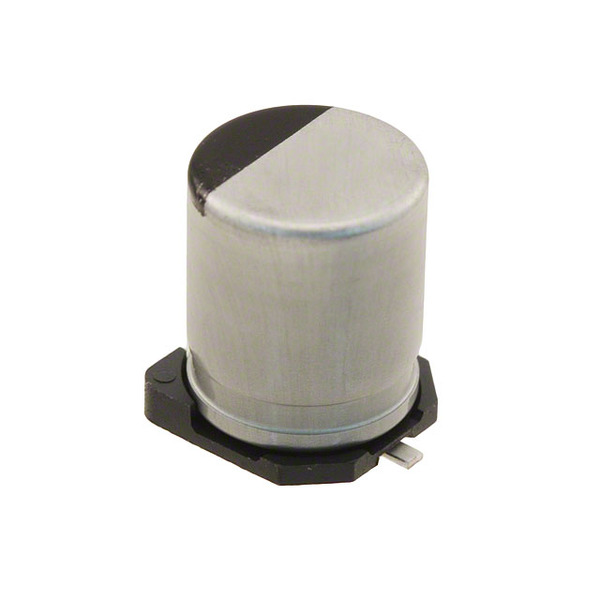

Images are for reference only.
See Product Specifications for product details.
Buy EEH-ZC1J330P with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EEH-ZC1J330P with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EEH-ZC1J330P |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM POLY HYB 33UF 63V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.23 | $2.609 | $1.993 | |||
Specifications
Data sheet
| Voltage - Rated: | 63V |
|---|---|
| Type: | Hybrid |
| Tolerance: | ±20% |
| Surface Mount Land Size: | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Size / Dimension: | 0.315" Dia (8.00mm) |
| Series: | ZC |
| Ripple Current @ Low Frequency: | 110mA @ 100Hz |
| Ripple Current @ High Frequency: | 1.1A @ 100kHz |
| Ratings: | AEC-Q200 |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Radial, Can - SMD |
| Other Names: | P15468CT |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lifetime @ Temp.: | 4000 Hrs @ 125°C |
| Lead Spacing: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.413" (10.50mm) |
| ESR (Equivalent Series Resistance): | 40 mOhm |
| Detailed Description: | 33µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 40 mOhm 4000 Hrs @ 125°C |
| Capacitance: | 33µF |
| Applications: | Automotive |
| Email: | info@cjjhk.com |
Introduce
We can supply EEH-ZC1J330P, use the request quote form to request EEH-ZC1J330P pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEH-ZC1J330P.The price and lead time for EEH-ZC1J330P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEH-ZC1J330P.We look forward to working with you to establish long-term relations of cooperation
