EE80251B2-000U-999
Sunon

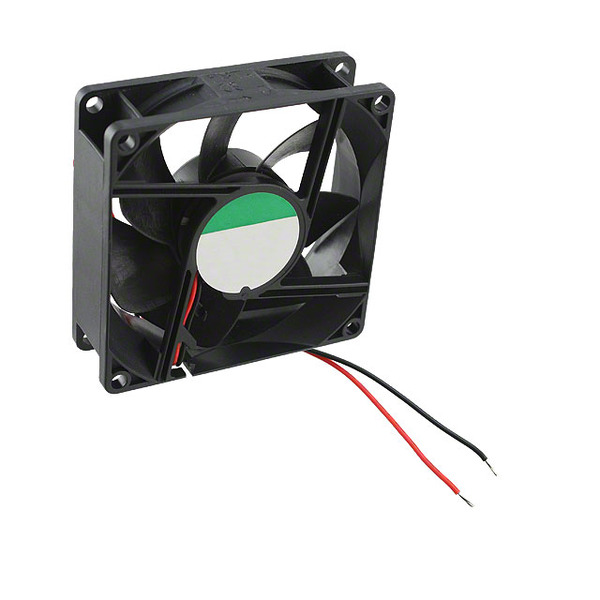

Images are for reference only.
See Product Specifications for product details.
Buy EE80251B2-000U-999 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EE80251B2-000U-999 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EE80251B2-000U-999 |
|---|---|
| Manufacturer | Sunon |
| Description | FAN AXIAL 80X25MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 30 pcs | ||||
|---|---|---|---|---|---|
| $6.484 | |||||
Specifications
Data sheet
| Width: | 25.00mm |
|---|---|
| Weight: | 0.165 lb (74.84g) |
| Voltage Range: | 4.5 ~ 13.8VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.150 in H2O (37.4 Pa) |
| Size / Dimension: | Square - 80mm L x 80mm H |
| Series: | EE |
| RPM: | 2900 RPM |
| Power (Watts): | 1.40W |
| Other Names: | EE80251B2-0000-999 EE80251B2-0000-999-ND |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 30.0 dB(A) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Polybutylene Terephthalate (PBT) |
| Material - Blade: | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lifetime @ Temp.: | 50000 Hrs @ 40°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.120A |
| Bearing Type: | Ball |
| Approvals: | CE, CUR, TUV, UL |
| Air Flow: | 37.0 CFM (1.04m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply EE80251B2-000U-999, use the request quote form to request EE80251B2-000U-999 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EE80251B2-000U-999.The price and lead time for EE80251B2-000U-999 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EE80251B2-000U-999.We look forward to working with you to establish long-term relations of cooperation
