EDZ1700/7
On-Shore Technology, Inc.

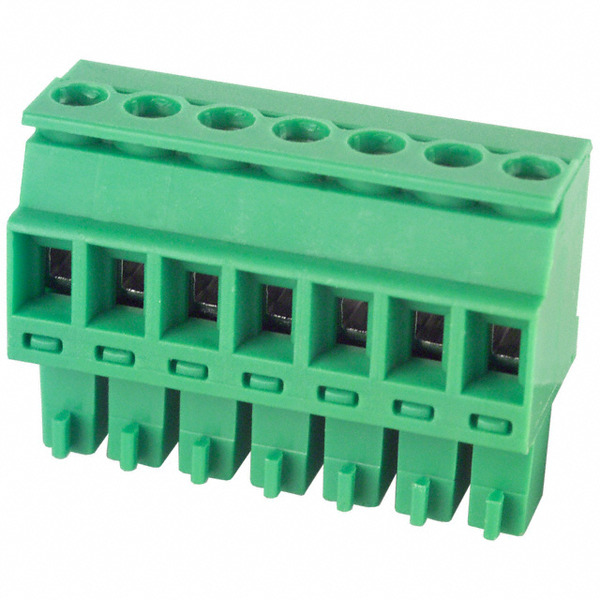

Images are for reference only.
See Product Specifications for product details.
Buy EDZ1700/7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EDZ1700/7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EDZ1700/7 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK PLUG 7POS 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $3.056 | |||||
Specifications
Data sheet
| Wire Strip Length: | 7mm |
|---|---|
| Wire Gauge or Range - mm²: | 1.5mm² |
| Wire Gauge or Range - AWG: | 16-28 AWG |
| Voltage - UL: | 300V |
| Type: | Plug, Female Sockets |
| Torque - Screw: | 0.4 Nm (3.5 Lb-In) |
| Termination Style: | Screw |
| Series: | EDZ1700 |
| Screw Size: | - |
| Positions Per Level: | 7 |
| Plug Wire Entry: | - |
| Pitch: | 0.150" (3.81mm) |
| Packaging: | Bulk |
| Other Names: | ED2459 |
| Operating Temperature: | -30°C ~ 105°C |
| Number of Positions: | 7 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | - |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | - |
| Features: | - |
| Detailed Description: | 7 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line) |
| Current - IEC: | - |
| Contact Tail Length: | - |
| Contact Mating Finish: | - |
| Contact Material: | Copper Tin Alloy |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply EDZ1700/7, use the request quote form to request EDZ1700/7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDZ1700/7.The price and lead time for EDZ1700/7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDZ1700/7.We look forward to working with you to establish long-term relations of cooperation
