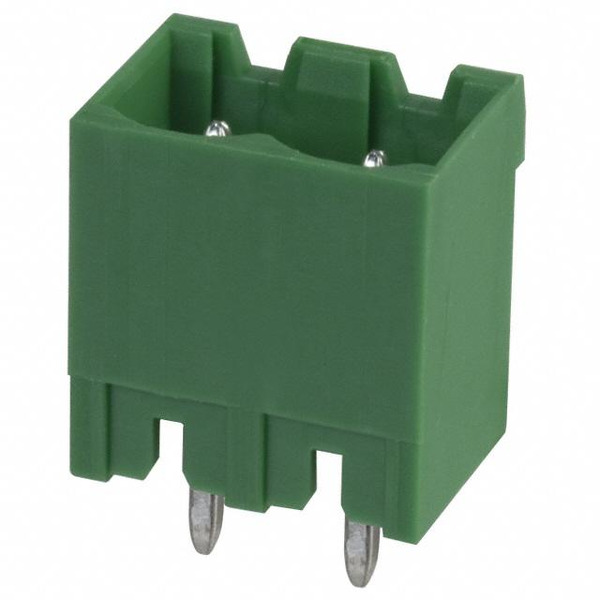

EDSTL955/2
On-Shore Technology, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy EDSTL955/2 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy EDSTL955/2 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | EDSTL955/2 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERM BLOCK HDR 2POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.87 | $0.54 | $0.462 | $0.415 | $0.407 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.346 | $0.329 | $0.294 | $0.23 | ||
Specifications
Data sheet
| Wire Strip Length: | - |
|---|---|
| Wire Gauge or Range - mm²: | - |
| Wire Gauge or Range - AWG: | - |
| Voltage - UL: | 300V |
| Type: | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw: | - |
| Termination Style: | - |
| Series: | EDSTL955 |
| Screw Size: | - |
| Positions Per Level: | 2 |
| Plug Wire Entry: | - |
| Pitch: | 0.197" (5.00mm) |
| Packaging: | Bulk |
| Other Names: | ED1833 EDSTL9552 |
| Operating Temperature: | -30°C ~ 105°C |
| Number of Positions: | 2 |
| Number of Levels: | 1 |
| Mounting Type: | Solder |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.154" (3.90mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | Vertical |
| Features: | - |
| Detailed Description: | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Solder |
| Current - IEC: | - |
| Contact Tail Length: | 0.154" (3.90mm) |
| Contact Mating Finish: | - |
| Contact Material: | - |
| Color: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply EDSTL955/2, use the request quote form to request EDSTL955/2 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDSTL955/2.The price and lead time for EDSTL955/2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDSTL955/2.We look forward to working with you to establish long-term relations of cooperation
