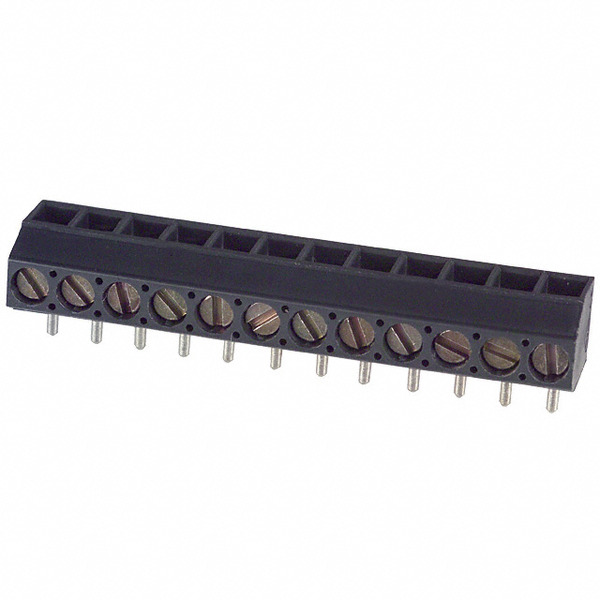

ED550/12DS
On-Shore Technology, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy ED550/12DS with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ED550/12DS with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ED550/12DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 3.5MM 12POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $3.67 | $2.798 | $2.621 | $2.329 | $2.279 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $2.102 | $1.899 | $1.684 | $1.583 | ||
Specifications
Data sheet
| Wire Termination: | Screw - Leaf Spring, Wire Guard |
|---|---|
| Wire Gauge: | 16-28 AWG |
| Voltage: | 125V |
| Torque - Screw: | 0.4 Nm (3.5 Lb-In) |
| Series: | ED550/DS |
| Screw Thread: | M2 |
| Screw Material - Plating: | - |
| Positions Per Level: | 12 |
| Pitch: | 0.138" (3.50mm) |
| Packaging: | Bulk |
| Other Names: | ED1511 ED550/12 ED55012DS |
| Operating Temperature: | -30°C ~ 105°C |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Orientation: | Vertical with Board |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA), Nylon |
| Features: | - |
| Detailed Description: | 12 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole |
| Current: | 6A |
| Contact Material - Plating: | Brass |
| Color: | Gray |
| Clamp Material - Plating: | Steel, Stainless |
| Email: | info@cjjhk.com |
Introduce
We can supply ED550/12DS, use the request quote form to request ED550/12DS pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED550/12DS.The price and lead time for ED550/12DS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ED550/12DS.We look forward to working with you to establish long-term relations of cooperation
