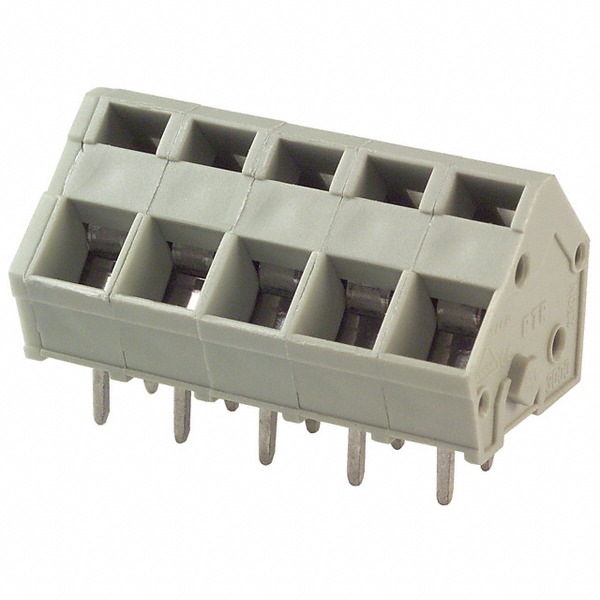

ED3000/5
On-Shore Technology, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy ED3000/5 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ED3000/5 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ED3000/5 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5MM 5POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.57 | $1.946 | $1.804 | $1.622 | $1.582 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.384 | $1.266 | $1.147 | $1.009 | ||
Specifications
Data sheet
| Wire Termination: | Screwless - Leg Spring, Push-In Spring |
|---|---|
| Wire Gauge: | 14-28 AWG |
| Voltage: | 300V |
| Torque - Screw: | - |
| Series: | ED3000 |
| Screw Thread: | - |
| Screw Material - Plating: | - |
| Positions Per Level: | 5 |
| Pitch: | 0.197" (5.00mm) |
| Packaging: | Bulk |
| Other Names: | ED2240 ED30005 |
| Operating Temperature: | -30°C ~ 105°C |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Orientation: | 45° (135°) Angle with Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA), Nylon |
| Features: | Interlocking (Side) |
| Detailed Description: | 5 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole |
| Current: | 16A |
| Contact Material - Plating: | - |
| Color: | Gray, Slate |
| Clamp Material - Plating: | Copper |
| Email: | info@cjjhk.com |
Introduce
We can supply ED3000/5, use the request quote form to request ED3000/5 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED3000/5.The price and lead time for ED3000/5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ED3000/5.We look forward to working with you to establish long-term relations of cooperation
