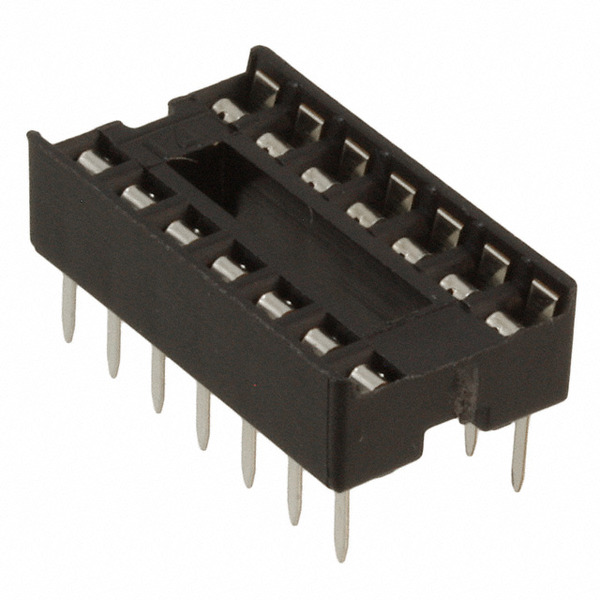

ED14DT
On-Shore Technology, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy ED14DT with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ED14DT with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ED14DT |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN IC DIP SOCKET 14POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 34 pcs | 68 pcs | 102 pcs |
|---|---|---|---|---|---|
| $0.18 | $0.173 | $0.147 | $0.129 | $0.12 | |
| 272 pcs | 510 pcs | 1020 pcs | 2516 pcs | ||
| $0.106 | $0.101 | $0.083 | $0.076 | ||
Specifications
Data sheet
| Type: | DIP, 0.3" (7.62mm) Row Spacing |
|---|---|
| Termination Post Length: | - |
| Termination: | Solder |
| Series: | ED |
| Pitch - Post: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Other Names: | ED3045-5 |
| Operating Temperature: | -55°C ~ 110°C |
| Number of Positions or Pins (Grid): | 14 (2 x 7) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Features: | Open Frame |
| Current Rating: | 1A |
| Contact Resistance: | 20 mOhm |
| Contact Material - Post: | Phosphor Bronze |
| Contact Material - Mating: | Phosphor Bronze |
| Contact Finish Thickness - Post: | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Email: | info@cjjhk.com |
Introduce
We can supply ED14DT, use the request quote form to request ED14DT pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED14DT.The price and lead time for ED14DT depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ED14DT.We look forward to working with you to establish long-term relations of cooperation
