ED114/11DS
On-Shore Technology, Inc.

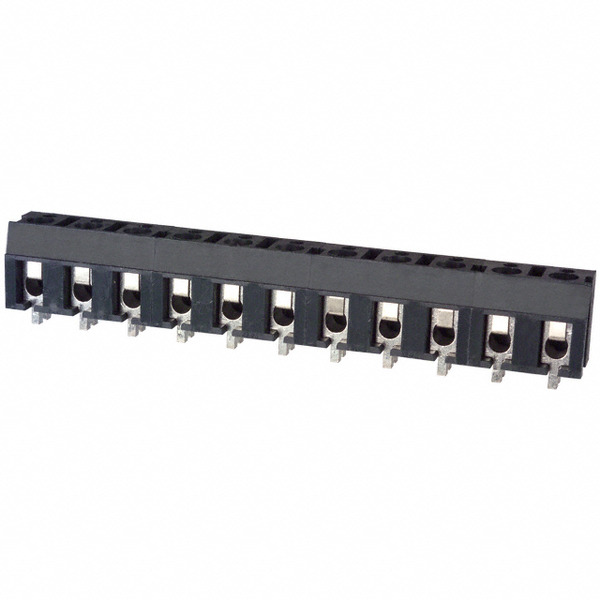

Images are for reference only.
See Product Specifications for product details.
Buy ED114/11DS with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ED114/11DS with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ED114/11DS |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 7.50MM VERT 11POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $4.002 | |||||
Specifications
Data sheet
| Wire Termination: | Screw - Leaf Spring, Wire Guard |
|---|---|
| Wire Gauge: | 12-22 AWG |
| Voltage: | 300V |
| Torque - Screw: | 0.8 Nm (7.1 Lb-In) |
| Series: | ED114/DS |
| Screw Thread: | M3 |
| Screw Material - Plating: | - |
| Positions Per Level: | 11 |
| Pitch: | 0.295" (7.50mm) |
| Packaging: | Bulk |
| Other Names: | ED1576 |
| Operating Temperature: | -30°C ~ 105°C |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Orientation: | Horizontal with Board |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA), Nylon |
| Features: | Interlocking (Side) |
| Detailed Description: | 11 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole |
| Current: | 15A |
| Contact Material - Plating: | Brass |
| Color: | Gray |
| Clamp Material - Plating: | Steel, Stainless |
| Email: | info@cjjhk.com |
Introduce
We can supply ED114/11DS, use the request quote form to request ED114/11DS pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED114/11DS.The price and lead time for ED114/11DS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ED114/11DS.We look forward to working with you to establish long-term relations of cooperation
