ECQ-B2563JF
Panasonic

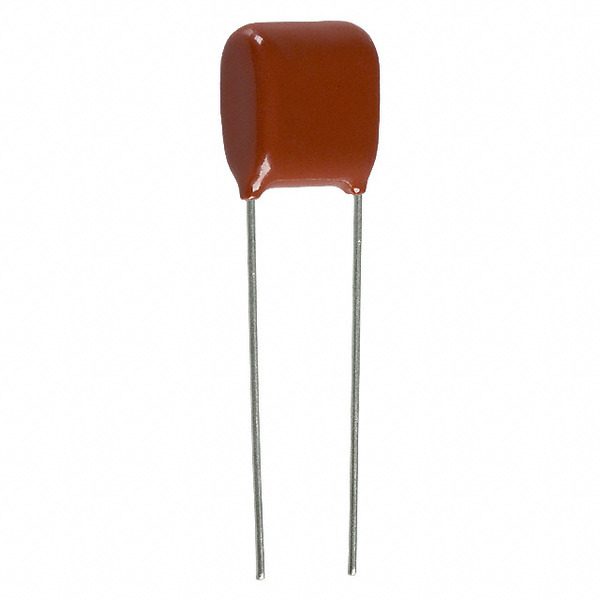

Images are for reference only.
See Product Specifications for product details.
Buy ECQ-B2563JF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ECQ-B2563JF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ECQ-B2563JF |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP FILM 0.056UF 5% 200VDC RAD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.37 | $0.258 | $0.155 | $0.116 | ||
| 1000 pcs | 2500 pcs | 5000 pcs | |||
| $0.098 | $0.093 | $0.088 | |||
Specifications
Data sheet
| Voltage Rating - DC: | 200V |
|---|---|
| Voltage Rating - AC: | - |
| Tolerance: | ±5% |
| Termination: | PC Pins |
| Size / Dimension: | 0.531" L x 0.236" W (13.50mm x 6.00mm) |
| Series: | ECQ-B(F) |
| Ratings: | - |
| Packaging: | Bulk |
| Package / Case: | Radial |
| Other Names: | ECQB2563JF P4558A |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Spacing: | 0.394" (10.00mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Height - Seated (Max): | 0.571" (14.50mm) |
| Features: | - |
| Dielectric Material: | Polyester |
| Detailed Description: | 0.056µF Film Capacitor 200V Polyester Radial |
| Capacitance: | 0.056µF |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply ECQ-B2563JF, use the request quote form to request ECQ-B2563JF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECQ-B2563JF.The price and lead time for ECQ-B2563JF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECQ-B2563JF.We look forward to working with you to establish long-term relations of cooperation
