ECMF04-4AMX12
STMicroelectronics

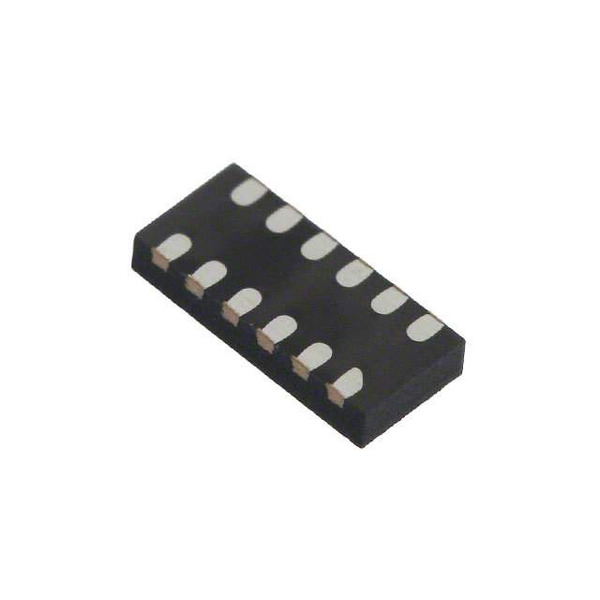

Images are for reference only.
See Product Specifications for product details.
Buy ECMF04-4AMX12 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ECMF04-4AMX12 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ECMF04-4AMX12 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | ECMF Series 2.5 Ohm Surface Mount Common Mode Choke UDFN-12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.523 | $0.472 | $0.426 | $0.416 | ||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.130" L x 0.059" W (3.30mm x 1.50mm) |
| Series: | ECMF |
| Ratings: | - |
| Packaging: | Original-Reel® |
| Package / Case: | 12-UFDFN |
| Other Names: | 497-10774-6 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Lines: | 4 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 0.024" (0.60mm) |
| Filter Type: | Signal Line |
| Features: | ESD |
| Detailed Description: | 4 Line Common Mode Choke Surface Mount 200mA DCR 2.5 Ohm |
| DC Resistance (DCR) (Max): | 2.5 Ohm |
| Current Rating (Max): | 200mA |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply ECMF04-4AMX12, use the request quote form to request ECMF04-4AMX12 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECMF04-4AMX12.The price and lead time for ECMF04-4AMX12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECMF04-4AMX12.We look forward to working with you to establish long-term relations of cooperation
