ECMF02-2HSMX6
STMicroelectronics

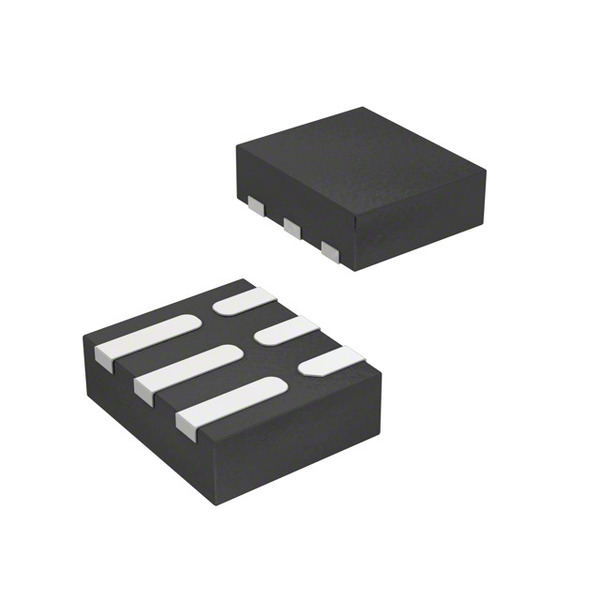

Images are for reference only.
See Product Specifications for product details.
Buy ECMF02-2HSMX6 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ECMF02-2HSMX6 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ECMF02-2HSMX6 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | ESD protected common mode filter for USB3.0 interface, 3200MHz, 6V, QFN-6L, RoHS, Tape And Reel |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.412 | $0.372 | $0.335 | $0.328 | ||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.063" L x 0.053" W (1.60mm x 1.35mm) |
| Series: | ECMF |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 6-UFQFN |
| Other Names: | 497-14544-2 ECMF02-2HSMX6-ND |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 0.022" (0.55mm) |
| Filter Type: | Signal Line |
| Features: | ESD |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 100mA DCR 9 Ohm |
| DC Resistance (DCR) (Max): | 9 Ohm |
| Current Rating (Max): | 100mA |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply ECMF02-2HSMX6, use the request quote form to request ECMF02-2HSMX6 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECMF02-2HSMX6.The price and lead time for ECMF02-2HSMX6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECMF02-2HSMX6.We look forward to working with you to establish long-term relations of cooperation
