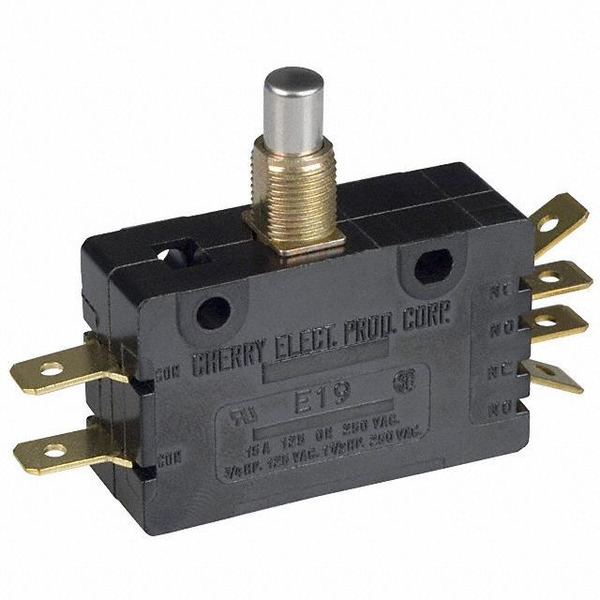

E19-00M
Cherry Switches (ZF Electronics)
Images are for reference only.
See Product Specifications for product details.
Buy E19-00M with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy E19-00M with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | E19-00M |
|---|---|
| Manufacturer | Cherry Switches (ZF Electronics) |
| Description | SWITCH SNAP ACTION DPDT 15A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.05 | $7.79 | $7.38 | $6.97 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $6.355 | $5.945 | $5.74 | $5.535 | ||
Specifications
Data sheet
| Voltage Rating - AC: | 125V |
|---|---|
| Termination Style: | Quick Connect - 0.250" (6.3mm) |
| Switch Function: | On-Mom |
| Series: | E |
| Release Force: | - |
| Pretravel: | 0.050" (1.27mm) |
| Packaging: | Bulk |
| Overtravel: | 0.219" (5.6mm) |
| Other Names: | 0E19-00M 0E19-00M0 0E1900M0 0E1900MO CH324 E19-00M0 E1900M |
| Operating Temperature: | -40°C ~ 105°C |
| Operating Position: | 0.812" (20.6mm) |
| Operating Force: | 850gf |
| Mounting Type: | Panel Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | - |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Electrical Life: | 6,000 Cycles |
| Differential Travel: | 0.015" (0.38mm) |
| Current Rating: | 15A (AC) |
| Circuit: | DPDT |
| Actuator Type: | Overtravel Plunger |
| Email: | info@cjjhk.com |
Introduce
We can supply E19-00M, use the request quote form to request E19-00M pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number E19-00M.The price and lead time for E19-00M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# E19-00M.We look forward to working with you to establish long-term relations of cooperation
