DRQ73-220-R
Bussmann (Eaton)

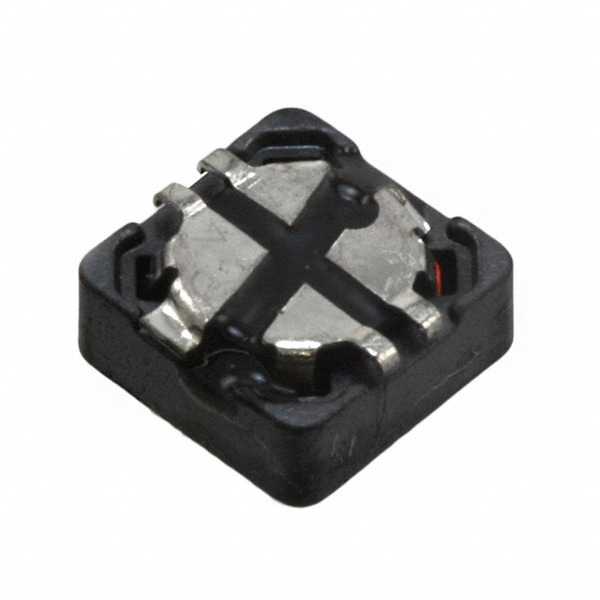

Images are for reference only.
See Product Specifications for product details.
Buy DRQ73-220-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ73-220-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DRQ73-220-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | INDUCT ARRAY 2 COIL 22.65UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.99 | $1.835 | $1.285 | $1.04 | ||
Specifications
Data sheet
| Tolerance: | ±20% |
|---|---|
| Size / Dimension: | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Shielding: | Shielded |
| Series: | DRQ |
| Ratings: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1246-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 90.6µH |
| Inductance - Connected In Parallel: | 22.65µH |
| Height: | 0.140" (3.55mm) |
| Detailed Description: | Shielded 2 Coil Inductor Array 90.6µH Inductance - Connected in Series 22.65µH Inductance - Connected in Parallel 107 mOhm DC Resistance (DCR) - Parallel 1.62A Nonstandard |
| DC Resistance (DCR) - Series: | 429 mOhm |
| DC Resistance (DCR) - Parallel: | 107 mOhm |
| Current Saturation - Series: | 830mA |
| Current Saturation - Parallel: | 1.67A |
| Current Rating - Series: | 811mA |
| Current Rating - Parallel: | 1.62A |
| Email: | info@cjjhk.com |
Introduce
We can supply DRQ73-220-R, use the request quote form to request DRQ73-220-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRQ73-220-R.The price and lead time for DRQ73-220-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DRQ73-220-R.We look forward to working with you to establish long-term relations of cooperation
