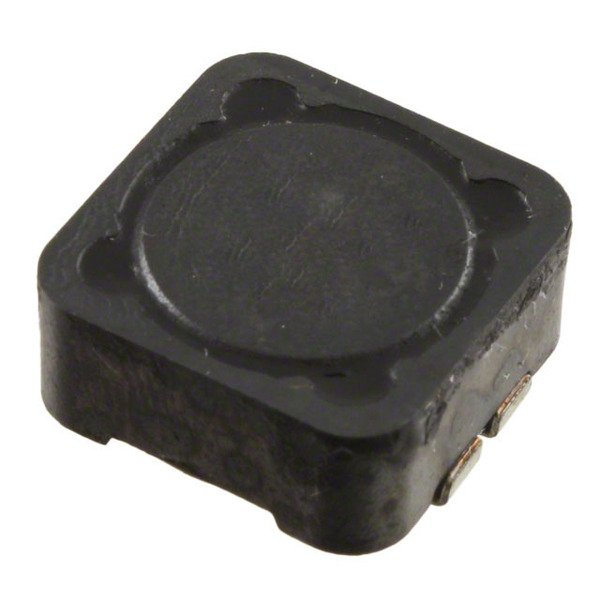

DRQ125-150-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy DRQ125-150-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DRQ125-150-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DRQ125-150-R |
|---|---|
| Manufacturer | Eaton |
| Description | Ind Power Shielded Wirewound 15.35uH/61.4uH 20% 100KHz Ferrite 4.27A/2.13A T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.232 | $1.112 | $1.003 | $0.981 | ||
Specifications
Data sheet
| Tolerance: | ±20% |
|---|---|
| Size / Dimension: | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Shielding: | Shielded |
| Series: | DRQ |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1290-2 DRQ125-150 DRQ125-150-ND DRQ125-150-R-ND DRQ125-150R DRQ125150R |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Coils: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance - Connected In Series: | 61.4µH |
| Inductance - Connected In Parallel: | 15.35µH |
| Height: | 0.236" (6.00mm) |
| Detailed Description: | Shielded 2 Coil Inductor Array 61.4µH Inductance - Connected in Series 15.35µH Inductance - Connected in Parallel 29.8 mOhm DC Resistance (DCR) - Parallel 4.27A Nonstandard |
| DC Resistance (DCR) - Series: | 120 mOhm |
| DC Resistance (DCR) - Parallel: | 29.8 mOhm |
| Current Saturation - Series: | 2.85A |
| Current Saturation - Parallel: | 5.69A |
| Current Rating - Series: | 2.13A |
| Current Rating - Parallel: | 4.27A |
| Email: | info@cjjhk.com |
Introduce
We can supply DRQ125-150-R, use the request quote form to request DRQ125-150-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRQ125-150-R.The price and lead time for DRQ125-150-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DRQ125-150-R.We look forward to working with you to establish long-term relations of cooperation
