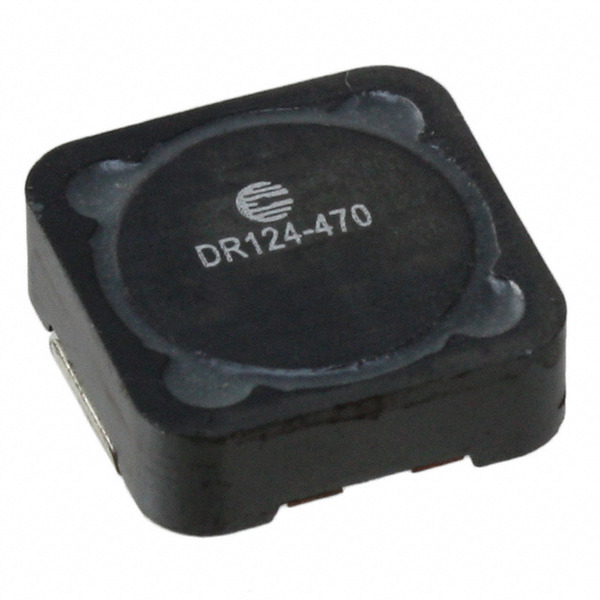

DR124-470-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy DR124-470-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DR124-470-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DR124-470-R |
|---|---|
| Manufacturer | Eaton |
| Description | Ind Power Shielded Wirewound 47uH 20% 100KHz Ferrite 2.2A T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.897 | $0.81 | $0.73 | $0.715 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Shielding: | Shielded |
| Series: | DR124 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1436-2 DR124470R |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 47µH |
| Height - Seated (Max): | 0.177" (4.50mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 47µH Shielded Wirewound Inductor 2.2A 149.6 mOhm Max Nonstandard |
| DC Resistance (DCR): | 149.6 mOhm Max |
| Current Rating: | 2.2A |
| Current - Saturation: | 2.63A |
| Email: | info@cjjhk.com |
Introduce
We can supply DR124-470-R, use the request quote form to request DR124-470-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DR124-470-R.The price and lead time for DR124-470-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DR124-470-R.We look forward to working with you to establish long-term relations of cooperation
