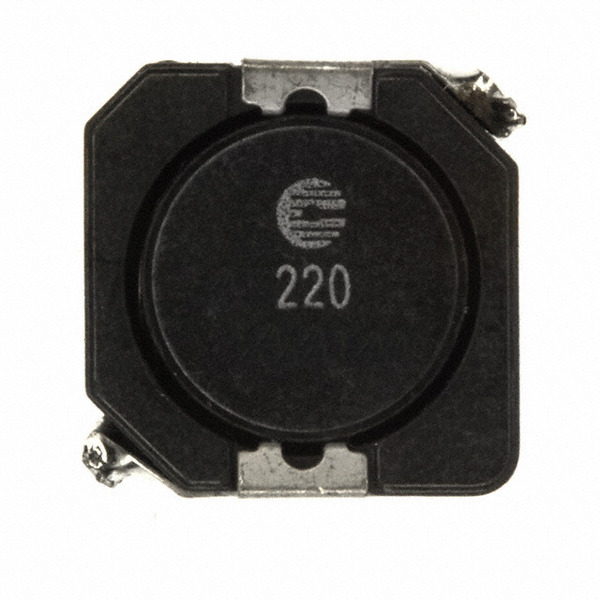

DR1050-220-R
Bussmann (Eaton)
Images are for reference only.
See Product Specifications for product details.
Buy DR1050-220-R with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DR1050-220-R with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DR1050-220-R |
|---|---|
| Manufacturer | Bussmann (Eaton) |
| Description | FIXED IND 22UH 3.12A 48.4 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.14 | $1.977 | $1.384 | |||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±30% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Shielding: | Shielded |
| Series: | DR1050 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | Nonstandard |
| Other Names: | 513-1417-1 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 22µH |
| Height - Seated (Max): | 0.197" (5.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 22µH Shielded Wirewound Inductor 3.12A 48.4 mOhm Max Nonstandard |
| DC Resistance (DCR): | 48.4 mOhm Max |
| Current Rating: | 3.12A |
| Current - Saturation: | 3A |
| Email: | info@cjjhk.com |
Introduce
We can supply DR1050-220-R, use the request quote form to request DR1050-220-R pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DR1050-220-R.The price and lead time for DR1050-220-R depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DR1050-220-R.We look forward to working with you to establish long-term relations of cooperation
