DMN3730UFB-7
Diodes Incorporated

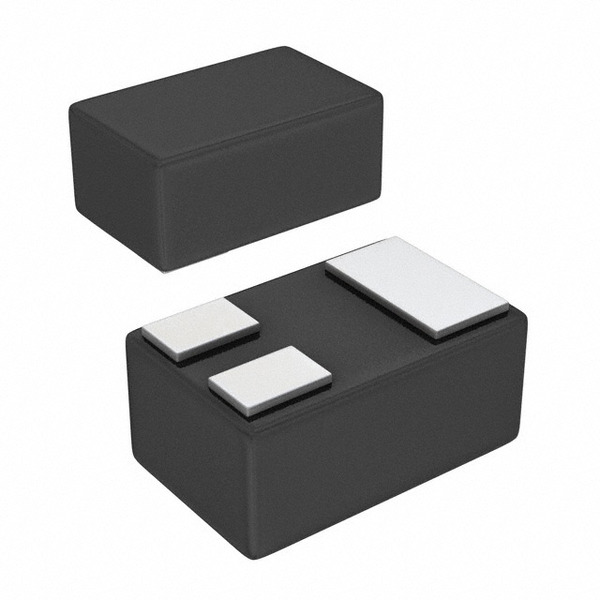

Images are for reference only.
See Product Specifications for product details.
Buy DMN3730UFB-7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DMN3730UFB-7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DMN3730UFB-7 |
|---|---|
| Manufacturer | Diodes Inc. |
| Description | Trans Mosfet N-ch 30V 0.91A 3-PIN Dfn T/r / Mosfet N-ch 30V 750MA Dfn |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.222 | $0.20 | $0.181 | $0.177 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 950mV @ 250µA |
|---|---|
| Vgs (Max): | ±8V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | 3-DFN |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 460 mOhm @ 200mA, 4.5V |
| Power Dissipation (Max): | 470mW (Ta) |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 3-UFDFN |
| Other Names: | DMN3730UFB-7TR DMN3730UFB7 |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 26 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 64.3pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs: | 1.6nC @ 4.5V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss): | 30V |
| Detailed Description: | N-Channel 30V 750mA (Ta) 470mW (Ta) Surface Mount 3-DFN |
| Current - Continuous Drain (Id) @ 25°C: | 750mA (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply DMN3730UFB-7, use the request quote form to request DMN3730UFB-7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN3730UFB-7.The price and lead time for DMN3730UFB-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN3730UFB-7.We look forward to working with you to establish long-term relations of cooperation
