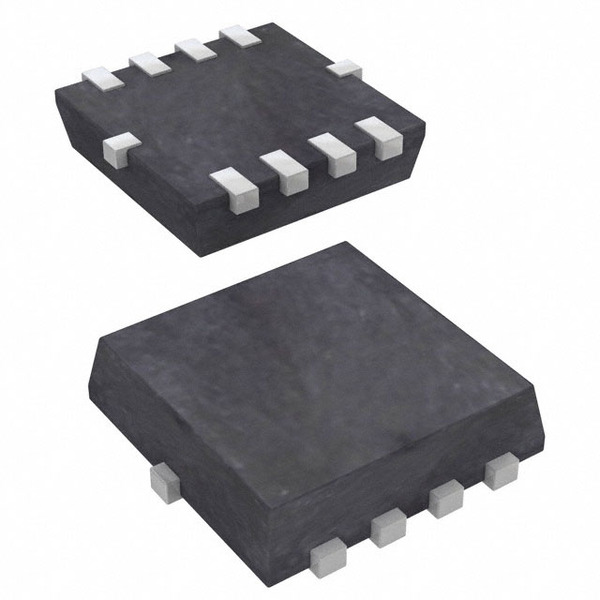

DMN2022UNS-13
Diodes Incorporated
Images are for reference only.
See Product Specifications for product details.
Buy DMN2022UNS-13 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DMN2022UNS-13 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DMN2022UNS-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | MOSFET 8V 24V POWERDI3333-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.275 | |||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 1V @ 250µA |
|---|---|
| Supplier Device Package: | PowerDI3333-8 |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 10.8 mOhm @ 4A, 4.5V |
| Power - Max: | 1.2W |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 8-PowerVDFN |
| Other Names: | DMN2022UNS-13DITR |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 1870pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs: | 20.3nC @ 4.5V |
| FET Type: | 2 N-Channel (Dual) Common Drain |
| FET Feature: | Standard |
| Drain to Source Voltage (Vdss): | 20V |
| Detailed Description: | Mosfet Array 2 N-Channel (Dual) Common Drain 20V 10.7A (Ta) 1.2W Surface Mount PowerDI3333-8 |
| Current - Continuous Drain (Id) @ 25°C: | 10.7A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply DMN2022UNS-13, use the request quote form to request DMN2022UNS-13 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN2022UNS-13.The price and lead time for DMN2022UNS-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN2022UNS-13.We look forward to working with you to establish long-term relations of cooperation
