DMN1004UFV-7
Diodes Incorporated

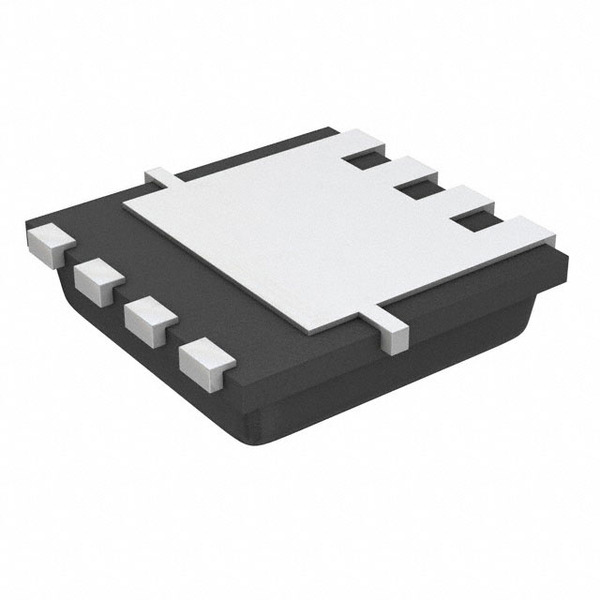

Images are for reference only.
See Product Specifications for product details.
Buy DMN1004UFV-7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DMN1004UFV-7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DMN1004UFV-7 |
|---|---|
| Manufacturer | Diodes Inc. |
| Description | Mosfet, N-Ch, 12V, 70A, Powerdi 3333 Rohs Compliant: Yes |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.272 | $0.246 | $0.222 | $0.217 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 1V @ 250µA |
|---|---|
| Vgs (Max): | ±8V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | PowerDI3333-8 |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 3.8 mOhm @ 15A, 4.5V |
| Power Dissipation (Max): | 1.9W (Ta) |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 8-PowerVDFN |
| Other Names: | DMN1004UFV-7DICT |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 2385pF @ 6V |
| Gate Charge (Qg) (Max) @ Vgs: | 47nC @ 8V |
| FET Type: | N-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 4.5V |
| Drain to Source Voltage (Vdss): | 12V |
| Detailed Description: | N-Channel 12V 70A (Tc) 1.9W (Ta) Surface Mount PowerDI3333-8 |
| Current - Continuous Drain (Id) @ 25°C: | 70A (Tc) |
| Email: | info@cjjhk.com |
Introduce
We can supply DMN1004UFV-7, use the request quote form to request DMN1004UFV-7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN1004UFV-7.The price and lead time for DMN1004UFV-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN1004UFV-7.We look forward to working with you to establish long-term relations of cooperation
