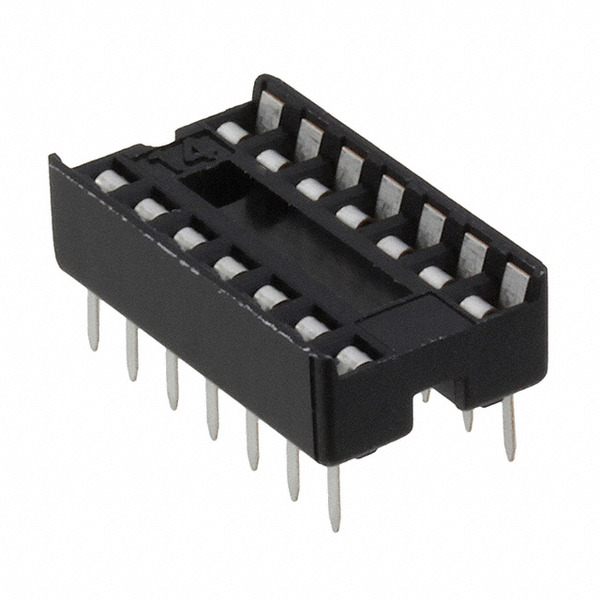

DILB14P-223TLF
Amphenol ICC / FCI
Images are for reference only.
See Product Specifications for product details.
Buy DILB14P-223TLF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DILB14P-223TLF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DILB14P-223TLF |
|---|---|
| Manufacturer | Amphenol ICC / FCI |
| Description | 14 Position 2.54 mm Pitch Open Frame Through Hole DIP Socket |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.374 | $0.338 | $0.305 | $0.298 | ||
Specifications
Data sheet
| Type: | DIP, 0.3" (7.62mm) Row Spacing |
|---|---|
| Termination Post Length: | 0.124" (3.15mm) |
| Termination: | Solder |
| Series: | - |
| Pitch - Post: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tube |
| Other Names: | 609-4712 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Positions or Pins (Grid): | 14 (2 x 7) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA), Nylon |
| Features: | Open Frame |
| Current Rating: | 1A |
| Contact Resistance: | 30 mOhm |
| Contact Material - Post: | Copper Alloy |
| Contact Material - Mating: | Copper Alloy |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Email: | info@cjjhk.com |
Introduce
We can supply DILB14P-223TLF, use the request quote form to request DILB14P-223TLF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DILB14P-223TLF.The price and lead time for DILB14P-223TLF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DILB14P-223TLF.We look forward to working with you to establish long-term relations of cooperation
