DGTD65T15H2TF
Diodes Incorporated

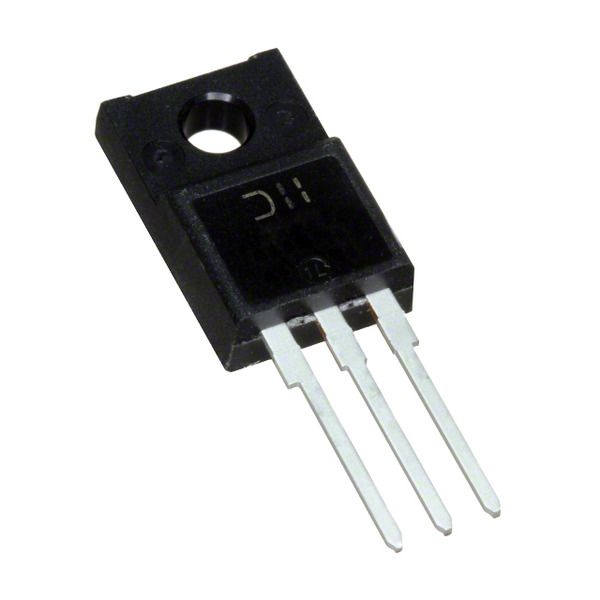

Images are for reference only.
See Product Specifications for product details.
Buy DGTD65T15H2TF with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DGTD65T15H2TF with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DGTD65T15H2TF |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IGBT600V-XITO-220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.68 | $1.508 | $1.212 | $0.996 | $0.825 | |
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 650V |
|---|---|
| Vce(on) (Max) @ Vge, Ic: | 2V @ 15V, 15A |
| Test Condition: | 400V, 15A, 10 Ohm, 15V |
| Td (on/off) @ 25°C: | 19ns/128ns |
| Switching Energy: | 270µJ (on), 86µJ (off) |
| Supplier Device Package: | ITO-220AB |
| Series: | - |
| Reverse Recovery Time (trr): | 150ns |
| Power - Max: | 48W |
| Package / Case: | TO-220-3 Full Pack, Isolated Tab |
| Other Names: | DGTD65T15H2TFDI |
| Operating Temperature: | -40°C ~ 175°C (TJ) |
| Mounting Type: | Through Hole |
| Manufacturer Standard Lead Time: | 20 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | Standard |
| IGBT Type: | Field Stop |
| Gate Charge: | 61nC |
| Detailed Description: | IGBT Field Stop 650V 30A 48W Through Hole ITO-220AB |
| Current - Collector Pulsed (Icm): | 60A |
| Current - Collector (Ic) (Max): | 30A |
| Email: | info@cjjhk.com |
Introduce
We can supply DGTD65T15H2TF, use the request quote form to request DGTD65T15H2TF pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DGTD65T15H2TF.The price and lead time for DGTD65T15H2TF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DGTD65T15H2TF.We look forward to working with you to establish long-term relations of cooperation
