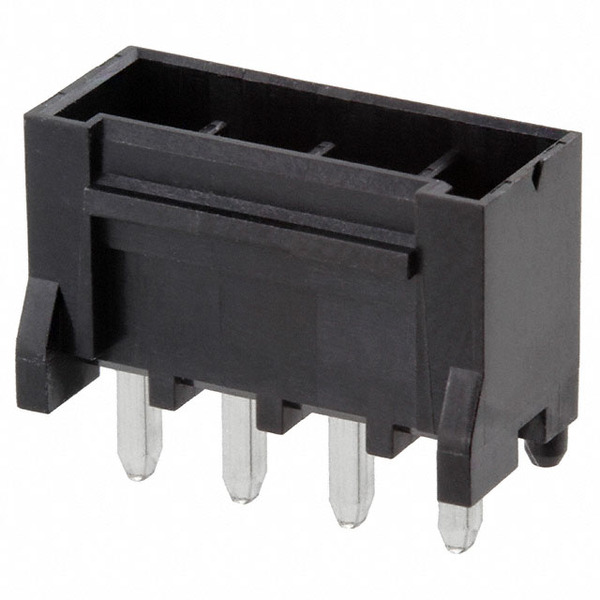

DF63-4P-3.96DSA
Hirose
Images are for reference only.
See Product Specifications for product details.
Buy DF63-4P-3.96DSA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DF63-4P-3.96DSA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DF63-4P-3.96DSA |
|---|---|
| Manufacturer | Hirose |
| Description | Connector, Header, 4POS, 1ROW, 3.96MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.342 | $0.309 | $0.279 | $0.273 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | EnerBee™ DF63 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.156" (3.96mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | H122365 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 4 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 18.8mm |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height: | 0.683" (17.35mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Lock |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole 4 position 0.156" (3.96mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.150" (3.81mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply DF63-4P-3.96DSA, use the request quote form to request DF63-4P-3.96DSA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DF63-4P-3.96DSA.The price and lead time for DF63-4P-3.96DSA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DF63-4P-3.96DSA.We look forward to working with you to establish long-term relations of cooperation
