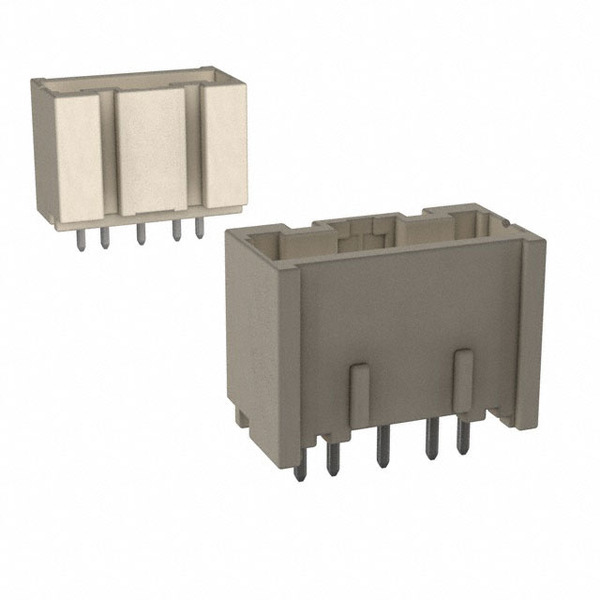

DF1EC-5P-2.5DSA(36)
Hirose
Images are for reference only.
See Product Specifications for product details.
Buy DF1EC-5P-2.5DSA(36) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DF1EC-5P-2.5DSA(36) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DF1EC-5P-2.5DSA(36) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 5POS 2.5MM STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.90 | $0.791 | $0.682 | $0.558 | $0.496 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | DF1E |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 5410870936 DF1EC-5P-2.5DSA(36)-ND H126041 |
| Operating Temperature: | -35°C ~ 85°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 5 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 14.3mm, 15.8mm, 19.8mm |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.425" (10.80mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Latch Holder |
| Detailed Description: | Connector Header Through Hole 5 position 0.098" (2.50mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.142" (3.60mm) |
| Contact Length - Mating: | 0.177" (4.50mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 39.4µin (1.00µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply DF1EC-5P-2.5DSA(36), use the request quote form to request DF1EC-5P-2.5DSA(36) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DF1EC-5P-2.5DSA(36).The price and lead time for DF1EC-5P-2.5DSA(36) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DF1EC-5P-2.5DSA(36).We look forward to working with you to establish long-term relations of cooperation
