DF1B-28DP-2.5DSA(01)
Hirose

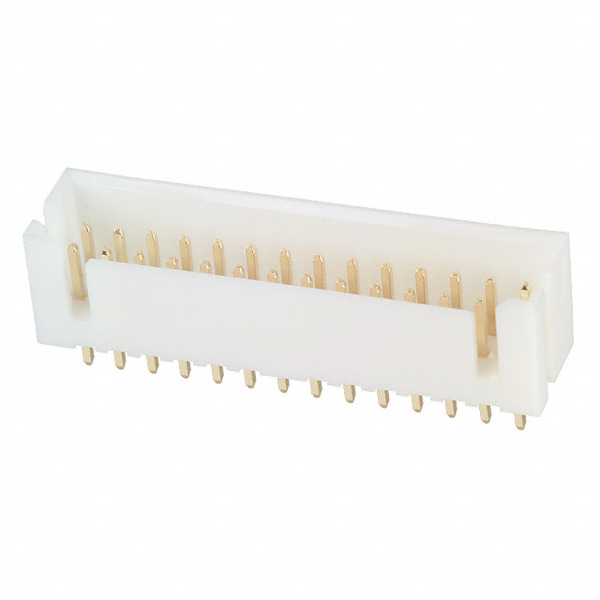

Images are for reference only.
See Product Specifications for product details.
Buy DF1B-28DP-2.5DSA(01) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy DF1B-28DP-2.5DSA(01) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | DF1B-28DP-2.5DSA(01) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 28POS 2.5MM STR GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $1.449 | |||||
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | DF1B |
| Row Spacing - Mating: | 0.098" (2.50mm) |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.417" (10.60mm) |
| Other Names: | *DF1B-28DP-2.5DSA(01 *DF1B-28DP-2.5DSA(01) H3678 |
| Operating Temperature: | -35°C ~ 85°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 28 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 14mm |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.374" (9.50mm) |
| Insulation Color: | White |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 28 position 0.098" (2.50mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.142" (3.60mm) |
| Contact Length - Mating: | 0.177" (4.50mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 8.00µin (0.203µm) |
| Contact Finish - Post: | - |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply DF1B-28DP-2.5DSA(01), use the request quote form to request DF1B-28DP-2.5DSA(01) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DF1B-28DP-2.5DSA(01).The price and lead time for DF1B-28DP-2.5DSA(01) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DF1B-28DP-2.5DSA(01).We look forward to working with you to establish long-term relations of cooperation
